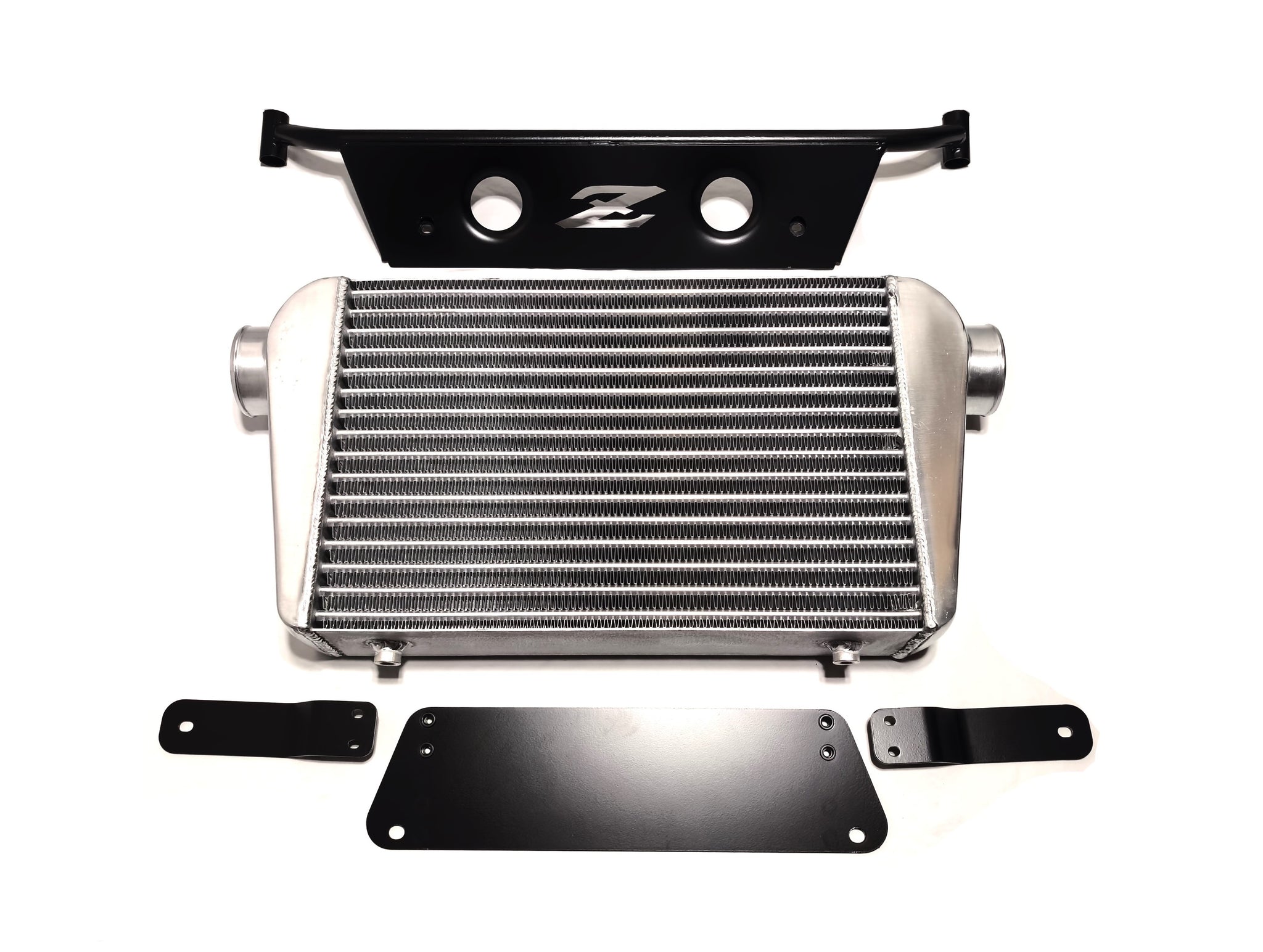

ProTunerz Intercooler Mount Kit for Datsun 280zx s130
Regular price$0.00
$525.00
Sale
Whether you're running a JZ, RB, LSX, or another performance engine swap, there's no need to waste time fabricating flimsy mounting brackets. This bolt-on mounting solution is designed to simplify installation while providing the strength and support your build deserves.
Featuring a 3.5-inch-thick, high-capacity intercooler core rated for 600+ HP applications, this kit is built to support serious power while maintaining efficient airflow. We've also integrated mounting provisions for a future ProTunerz Engine Oil Cooler Kit, allowing the oil cooler to sit close to the intercooler without unnecessarily restricting airflow to the condenser and radiator behind it.
High-Capacity Tube-and-Fin Intercooler
Designed for high-performance turbocharged applications.
Large 3.5-inch-thick core for increased cooling capacity.
Lightweight construction with a focus on efficient airflow and minimal pressure drop.
Designed to support 600+ HP applications.
Strong, Purpose-Built Mounting Brackets
Upper Mounting Bracket: TIG-welded steel construction with a durable black powder-coated finish. Designed to bolt directly to the radiator support without drilling.
Lower Mounting Bracket: Black powder-coated steel that secures the intercooler to the lower frame area and includes mounting provisions for the upcoming ProTunerz Engine Oil Cooler Kit.
ProTunerz Billet 50 mm Blow-Off Valve
Includes a ProTunerz billet 50 mm blow-off valve, available in your choice of silver or black.
Upgraded Cast End Tanks
Newly designed cast end tanks feature integrated fins for optimized airflow and reduced weight.
Reinforced Stainless-Steel Bungs
Features stainless-steel-helicoiled bungs for improved thread durability and long-term reliability.
Intercooler Specifications
Core Type: Tube and fin
Core Dimensions: 24" L × 12" H × 3.5" thick
Inlet/Outlet Diameter: 3"
Power Rating: Designed for 600+ HP applications
Blow-Off Valve: ProTunerz Billet 50 mm
Blow-Off Valve Finish: Silver or black
Mounting Brackets: Powder-coated steel
Vehicle Platform: Datsun 240Z–280Z (S30 chassis)
Performance Benefits
Improved intercooler efficiency and lower intake air temperatures.
Responsive performance with minimal pressure drop.
Supports increased power and torque in turbocharged applications.
Consistent cooling under demanding driving conditions.
Secure, purpose-built mounting without the need to fabricate custom brackets.
Integrated provisions for a future engine oil cooler installation.
Designed to help maintain airflow through the intercooler, condenser, and radiator.
Stop wasting time building custom intercooler mounts. The ProTunerz Intercooler Mount Kit combines a high-capacity intercooler, purpose-built mounting hardware, and a billet blow-off valve into one convenient package.
Spend less time fabricating and more time building the car you want.
Installation Notes
For S130 models, a 2.75–3" round hole must be drilled for the hot-side charge pipe. Location: 3" to the left of the upper radiator mounting hole. Lower bracket drills to frame with supplied self tap or Rivnuts
