MS3Pro Plug and Play for Ford 94-95 SN95 Mustang 5.0 MSPNP-Pro

Description

Enhance your Ford 94-95 SN95 Mustang 5.0 with the MSPNP-Pro ECU – a fully standalone, plug-and-play engine management solution designed for easy installation and maximum performance. This ECU is the ultimate choice for serious racers seeking reliable, custom-tuned engine management for off-road and motorsports applications.

Important: This unit is designed for Manual Transmission Only and does not support Automatic Transmission Control.

Compatibility:

94-95 Ford SN95 Mustang 5.0 MSPNP-Pro ECU Supports:

• 1994-1995 Ford SN95 Mustang: 302ci / 5.0L V8 (Manual Transmissions)

Features:

• Fully Plug and Play Installation: No wiring required for basic functionality.

  • Average Install Time: Under 1 hour!

• Pre-loaded Base Map: 5.0 HO base map pre-loaded

• Real-Time Tuning & Data Logging: Connect via laptop for data logging.

• 8 GB Internal Data Logging: Includes built-in SD card for easy data storage.

• Supports Most Aftermarket Wideband Sensors/Controllers: Integrates with many popular systems.

• Factory Tachometer Control: Controls your factory dashboard functions.

Fully Tunable Engine Control:

• 16×16 Fuel and Ignition Tables: High-resolution tuning for precise control over fuel and ignition mapping

• Multiple Acceleration Enrichment Strategies: Adjusts fuel and timing for acceleration

• Closed Loop Idle Speed Control: Maintains stable idle speed in varying conditions

• Air Conditioner Control: Manages AC system based on engine load

• 8 Sequential Fuel Injector Channels: With individual trim tables for precise fuel control

• Supports OEM Ignition System (TFI): Compatible with coil-on-plug conversion with up to 8 Sequential Ignition Outputs

• Onboard High Impedance Injector Drivers: Drives modern injectors efficiently

• Allows Removal of Stock MAF Sensor: Provides more flexibility in tuning

Advanced Feature Set:

• 12×12 Air-Fuel Ratio Target Tables: For precise tuning with wideband O2 sensors.

• Multiple Traction Control Strategies: Just add a front wheel VSS to enable.

• Built-in 3-Step Rev Limiter/Launch Control: Includes flat shift and burnout limiter.

• Time-Based Timing/Boost Increase After Launch: Optimizes timing and boost post-launch.

• Real-Time Barometric Correction: Adjusts for altitude changes in real-time.

• Internal 4-Bar MAP Sensor: Reads up to 44 PSI of boost for aggressive tuning.

• Configurable Engine Safeties, Warning Lights & Overboost Protection: Safeguards your engine with real-time monitoring.

• Closed Loop Boost Control: Requires EBC solenoid kit.

• CO2-Based Boost Control: Set boost by RPM and throttle, ground speed, or gear.

• Nitrous Control Strategies: Supports wet or dry nitrous systems with two channels for configurable staged or progressive control; includes options to add fuel or pull timing.

• Rally Style Anti-Lag: Enhances performance during launches.

• Water Injection Control: On/Off or variable control for optimal performance.

• Knock Sensor Input: With adjustable sensitivity and crank angle windowing.

• Table Switching Input: Change fuel and spark maps on the fly for different fuels or nitrous activation.

• Flex Fuel Sensor Input: Switch seamlessly between E85 and gasoline.

• Supports Many Aftermarket Dashes/Displays: Compatible with a variety of aftermarket systems.

• CANBus Connector: Allows interconnection with other MegaSquirt-compatible devices for additional functions (EGT Input, Automatic Transmission Controller, Additional Sensors, etc.).

What’s in the Box:

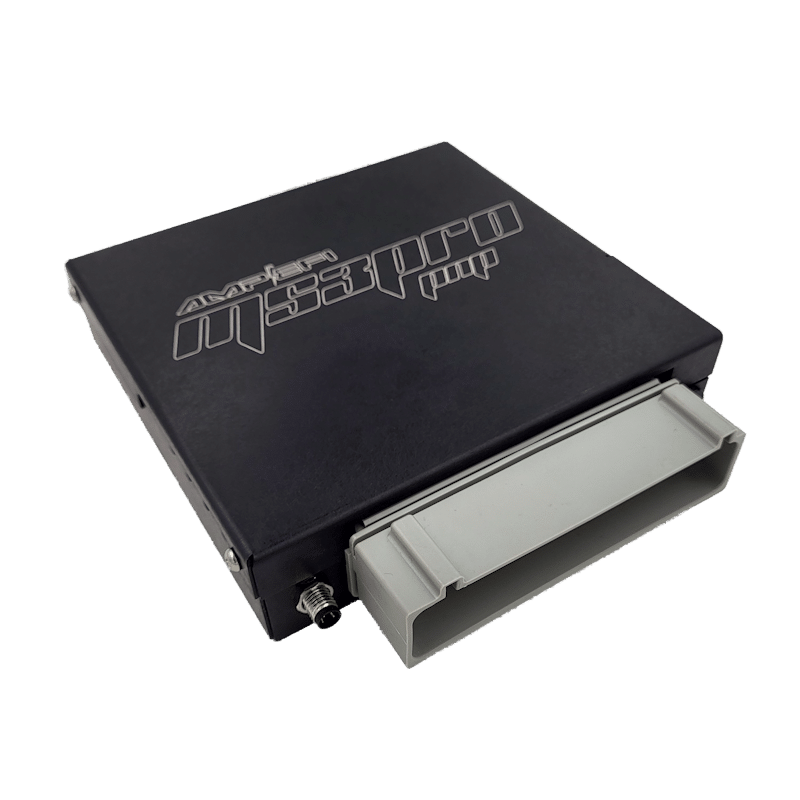

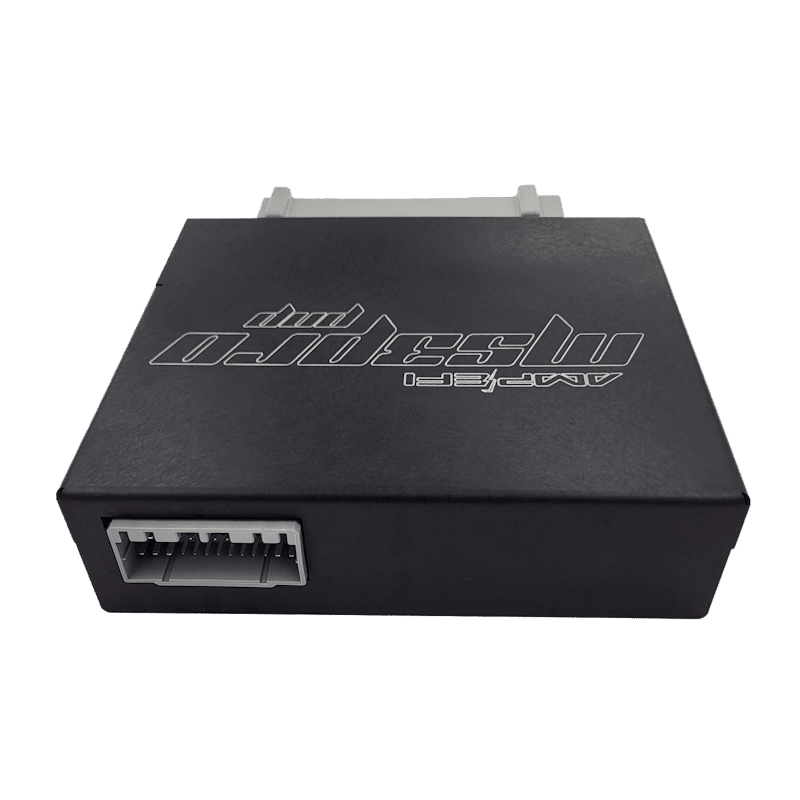

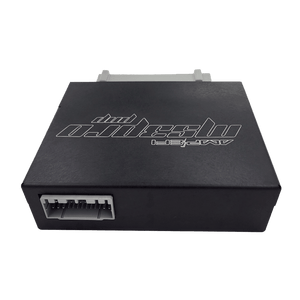

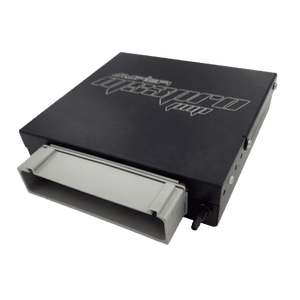

• 1994-1995 Ford Mustang SN95 MS3Pro Plug and Play ECU

• 6’ Vacuum Hose for MAP Signal and ‘T’ Fitting

• 26 Pin Connector for Options Port with 6″ Wire Pigtail

• M8 Serial Tuning Cable

• TunerStudio Registration Code
