Unleash the full potential of your engine with the MS3Pro Mini—a cutting-edge, high-performance engine management system built for serious racers and enthusiasts. Designed to work seamlessly with the Honda K-Series Plug-and-Play Harness, the Mini provides precision control, reliability, and expandability for your Ford-powered build. Whether you’re looking to maximize power, fine-tune your setup, or push your vehicle to its limits, this system delivers the features and flexibility you need to stay ahead of the competition.

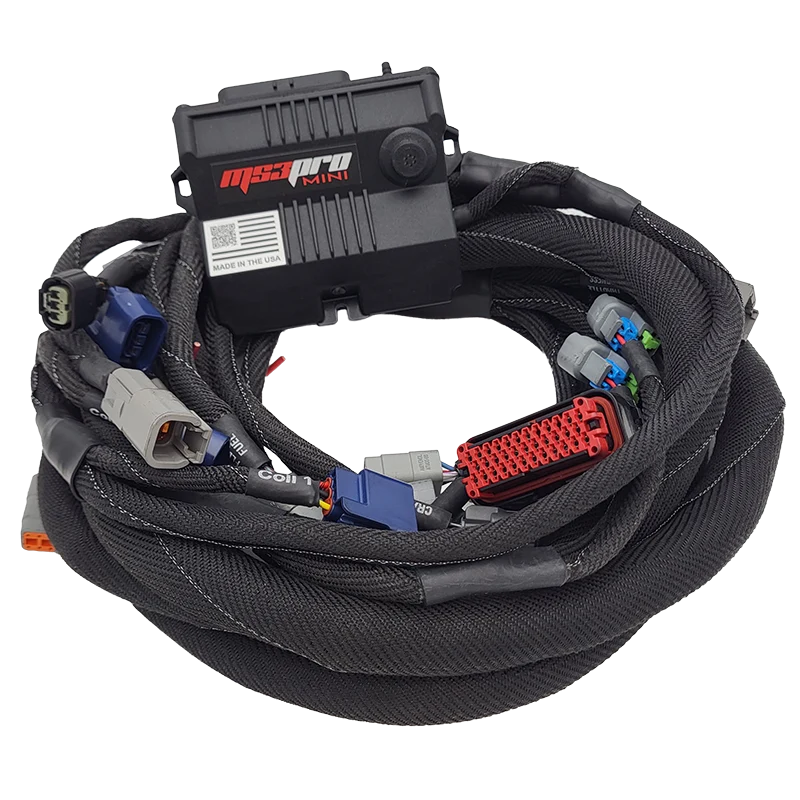

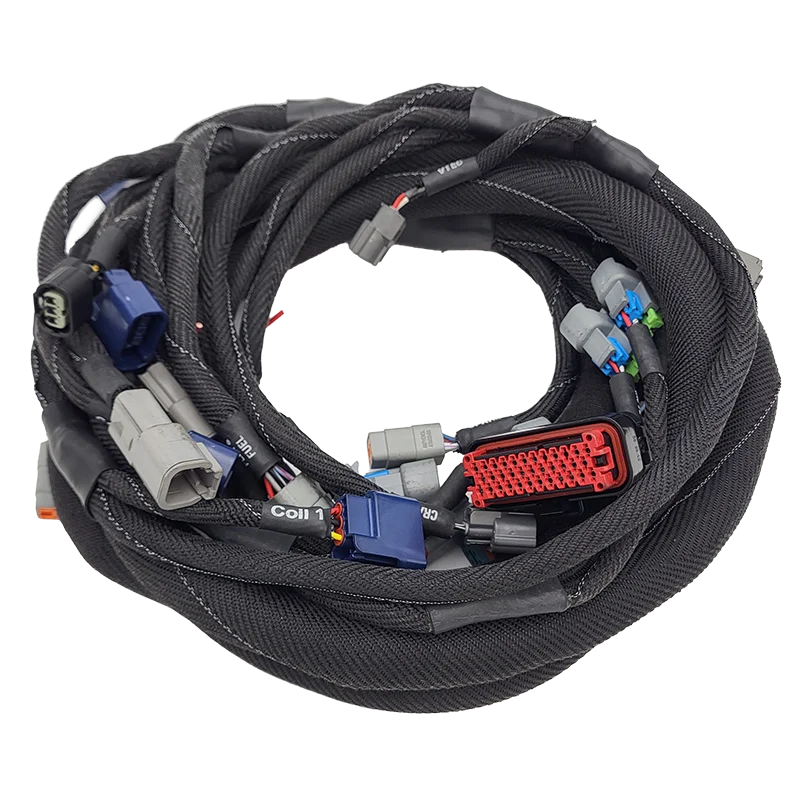

Honda K-Series Plug-and-Play Harness
The Honda K-Series Plug and Play Harness is the industry’s leading wiring solution for Honda K24 or K20 applications, offering unmatched quality, value, and ease of installation.
Compatibility
Engine
- K24A2
- K20 applications – Requires K24A2-style crank position sensor
- Additional K24 applications – Sensor or accessory changes may be required
Transmission
Professional Engineering
-
Plug and Play installation – Simplifies installation with a harness designed specifically around the Honda K-Series engine platform
-
Designed around the K24A2 – Harness routing and engine connections were developed using the K24A2 engine
-
VTEC and VTC control – Designed to provide full control of Honda's variable cam timing and VTEC systems through the MS3Pro ECU
Durable Construction
-
TechFlex woven wrap – for superior protection and durability
- High-temp TXL & GXL automotive-grade wire – For reliability in demanding racing environments
-
Labeled heatshrink on connectors – For quick and easy identification
-
Protected harness joints – Helps protect electrical connections from heat, moisture, and vibration
Room to Grow – Future-Proof Your Build
Additional MS3Pro I/O is integrated into the harness, providing access to advanced engine-management features such as:
- Boost Control
- Table switching
- Flex fuel
- Additional injector outputs
- Additional analog inputs
- And more!
Beyond its functional advantages, the K-Series harness provides a clean, professional installation suitable for competition-focused builds.
Throttle Options:
Due to the wide range of throttles used in K-series swaps, we leave the throttle broken out onto a 6 pin DTM connector.

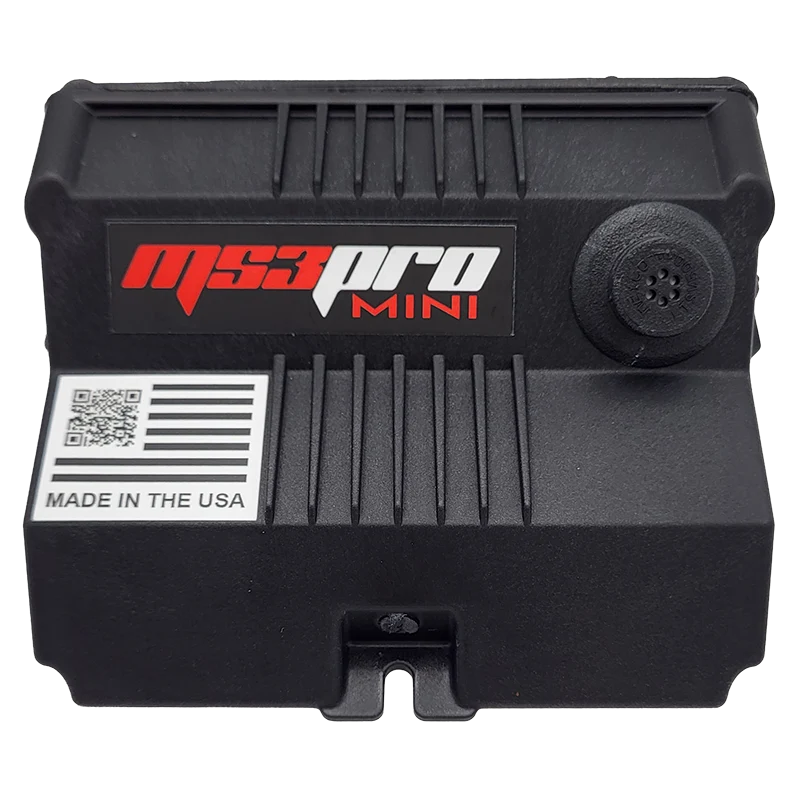

MS3Pro Mini
The MS3Pro Mini represents a revolutionary step in engine management technology, offering unparalleled scalability, performance, and reliability for even the most demanding applications.
Key Features:
-
Engine Support: Manages up to 8-cylinder engines with sequential fuel injection
-
Broad Ignition Compatibility: Supports over 50 ignition modes, including GM LS, Ford Coyote, Chrysler Hemi, and Bosch Motronic systems.
-
VVT Control: Provides complete control of up to 4 camshafts, utilizing both open-loop and closed-loop VVT strategies.
-
Enhanced Tuning Options: Supports VE-based, Speed Density, Alpha-N, MAF, and ITB tuning modes for ultimate tuning flexibility.
-
Self-Learning Fuel Strategy: Features real-time adaptive fuel tuning to optimize performance and efficiency.
-
Onboard Data Logging: Logs up to 64 channels at 330Hz, eliminating the need for additional data logging hardware.

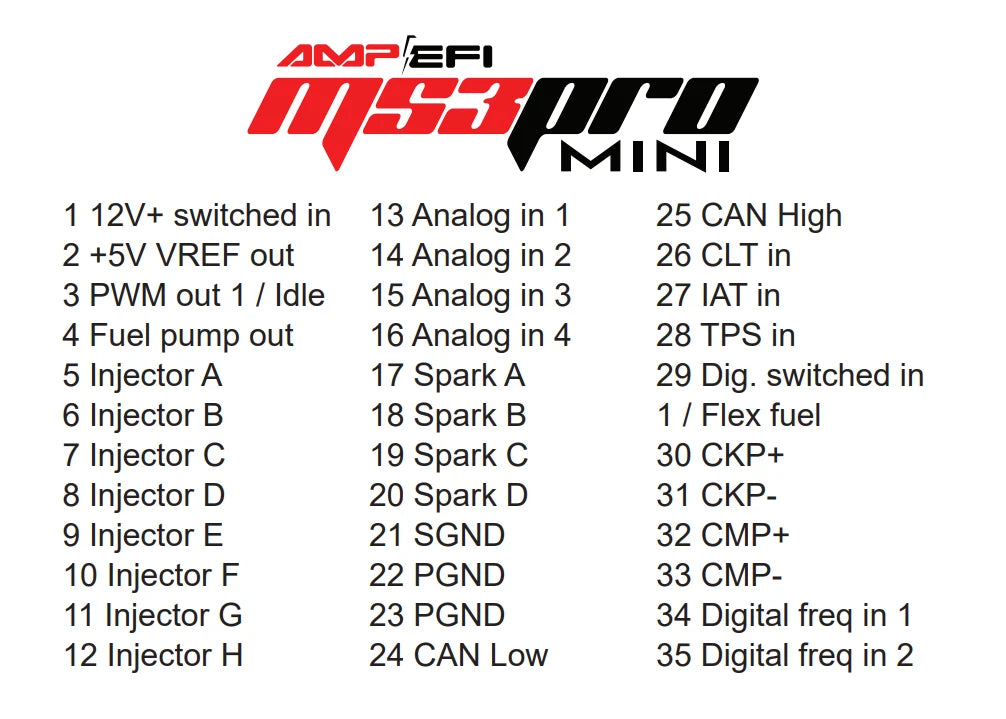

Inputs and Outputs (I/O) Configuration:
-
Injector & Spark Outputs
- Up to 8 Sequential High-Impedance Injector Outputs
- Up to 4 High Current Spark Outputs
-
Outputs
- 3 Digital Outputs
- 1 PWM Outputs
-
Inputs
- 4 Analog Inputs
- 3 Digital Inputs
- 2 Speed Inputs
What’s in the Box:
- K-Series Plug and Play Harness
- MS3Pro Mini
- K-Series Accessories
- Alternator Harness
- IAT Harness
- GM Cable Throttle
- DBW Throttle
- 0-150 PSI Oil Pressure Sensor
- IAT Sensor
- Connectors
- Spare
- Fuel/Fuel Pressure
- CAN
- O2 Sensor
- Tuning Cable
- TunerStudio Registration Code
