HT-061010 Multi-Function CAN Gauge Size: 52mm (2")
HT-061010 Multi-Function CAN Gauge Size: 52mm (2")
HT-061010 Multi-Function CAN Gauge Size: 52mm (2")

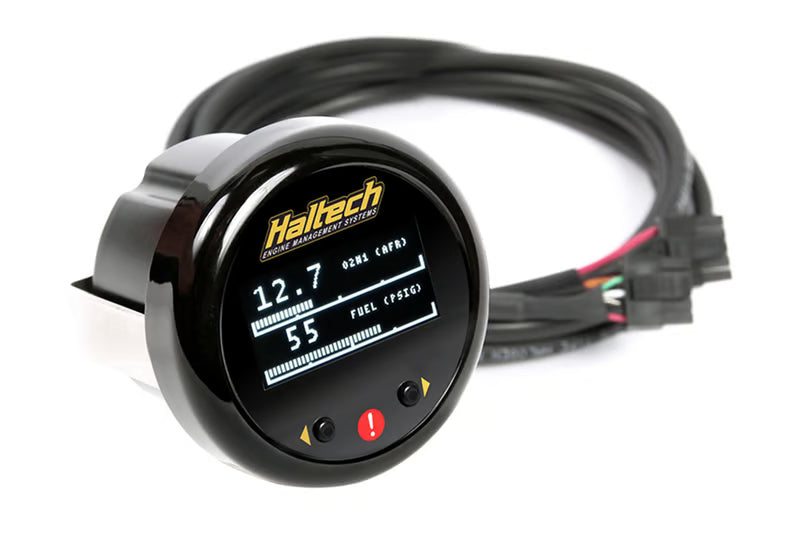

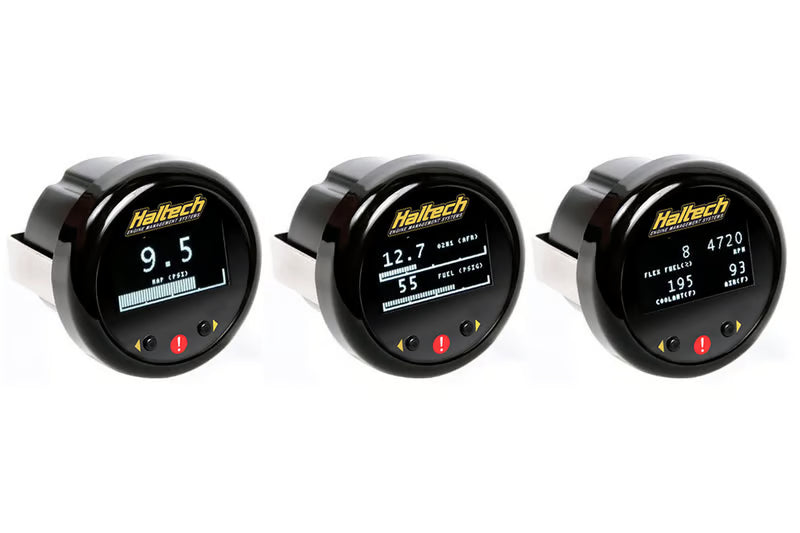

Haltech - HT-061010 Multi-Function CAN Gauge

Haltech - HT-061010 Multi-Function CAN Gauge

$440.00 Sale

Suits: Haltech Version 2 CAN bus protocol.

Includes: 52mm (2") CAN Gauge, gaugeART DTM-style CAN cable - 2.5m (8ft), mounting bracket.

Notes: This product is direct Plug'n'Play compatible with an Elite ECU CAN port, Elite ECU Harness CAN connector or multiple CAN device installation using an Elite 4 Port CAN HUB. If you are connecting this product with a Platinum Series ECU you will need a DTM4 to Tyco adaptor cable Part No. HT-130040.

Features
SUPPORTED PARAMETERS
  • Boost Pressure
  • Air/Fuel Ratio
  • Coolant Temperature
  • Fuel Pressure
  • Ethanol content
  • Air Temperature
  • Battery Voltage
  • Coolant Pressure
  • EGT
  • Fuel Level
  • Fuel Trim
  • Gear Position
  • Injector Duty
  • Nitrous Pressure
  • Oil Pressure
  • RPM
  • Transmission Line Pressure
  • Throttle Position
  • Transmission Oil Temperature
  • Turbo RPM
  • Wheel Speed
  • Wheel Slip
All above can be displayed without additional sensors.
COMPATIBLE WITH
  • Haltech Platinum Sprint Series
  • Haltech Platinum Sport Series
  • Haltech Pro Plugin Series
  • Haltech Elite Series
  • Haltech Nexus Series
