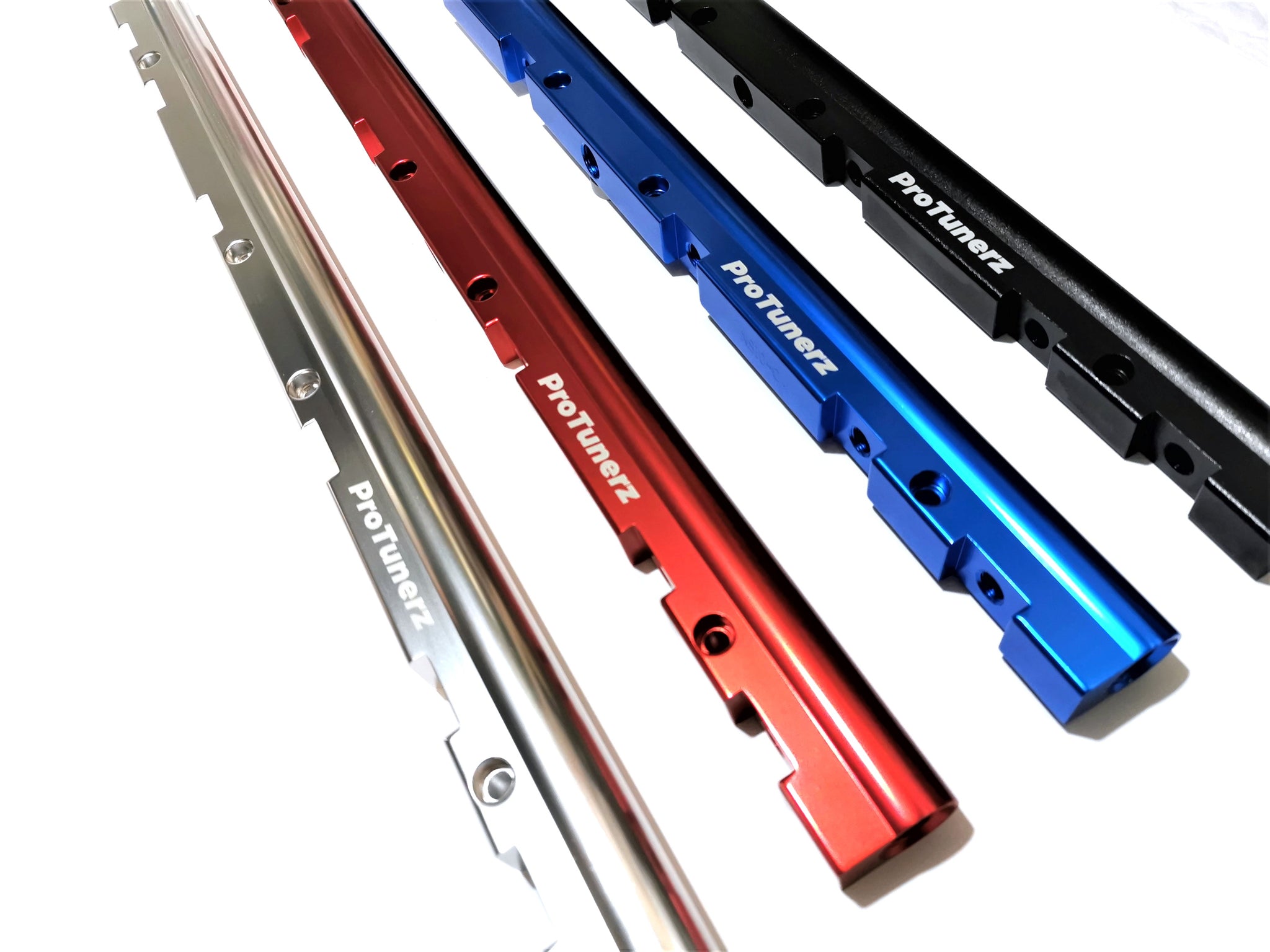

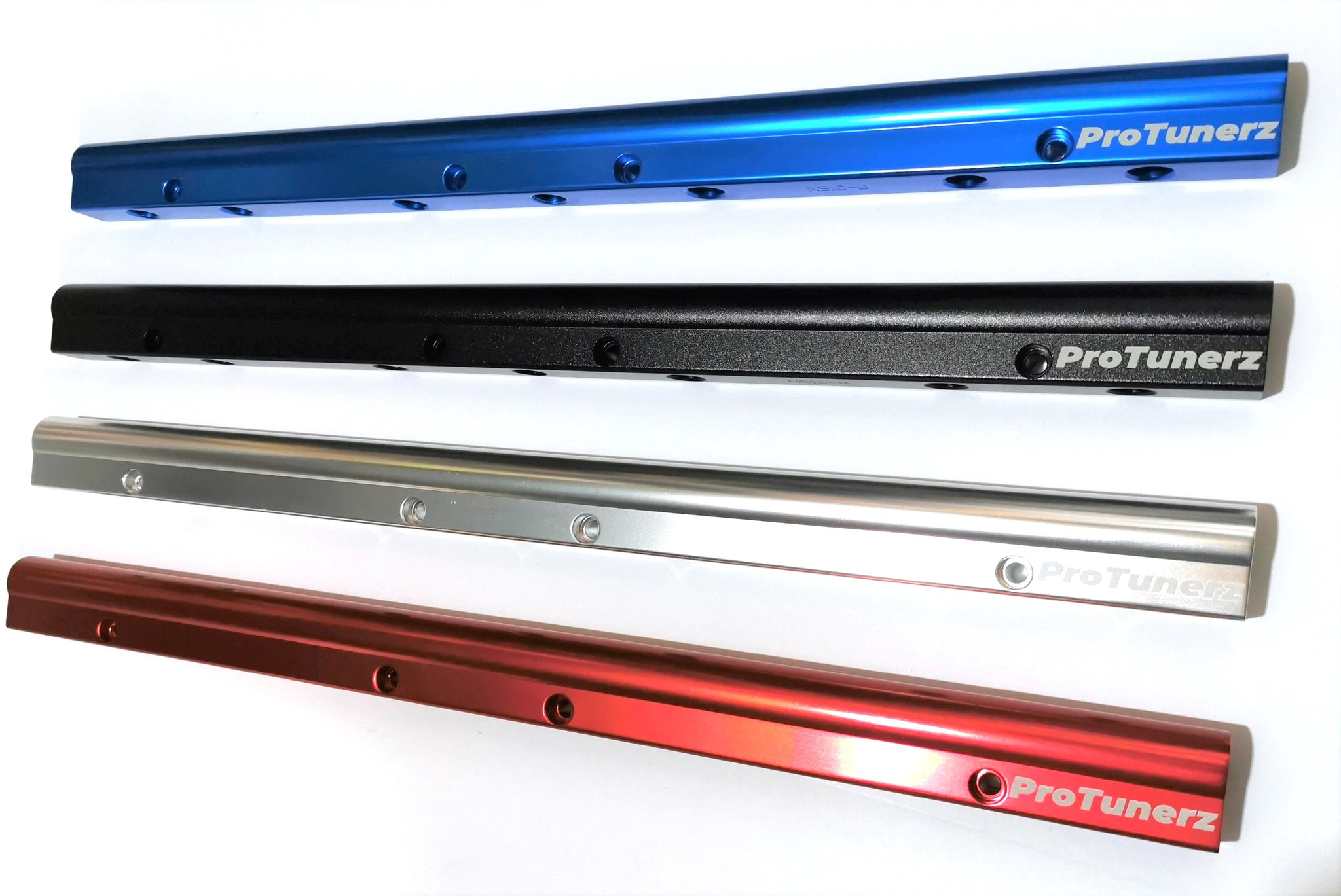

ProTunerz CNC Billet Fuel Fail for Datsun L-Series. Precision made on CNC Machine to exact Tolerances. Anodized in 4 Lovely Colors, three different sizes to choose from to cover any injector type.
IF YOU WANT TO RETAIN RUBBER HOSE FUEL LINES YOU WILL NEED 2X ORB-8 to 5/16 Barb for RAIL ENDS . 1X ORB-6 to 5/16 Barb (MIDDLE PORT IF USING FOR COLD START)
NOTE pictured are the old brackets Now ships with new brackets Left+Right Mounts to original Fuel Rail holes. (refer to pics)
Fuel rail kits contain
- CNC Anodized BILLET Fuel Rail with outer ORB-8 Thread, 6AN orb Fuel gauge port /cold start/pressure sensor.
- 2x ORB-8 to 6AN Male fittings
- 1x 6AN male for gauge/pressure/temp sensor
- 1x 6AN ORB plug.
- 2x CNC Hardened Stainless brackets
- 4x socket cap bolts
What Fuel Rail do I need?
Barb is for stock injectors with hose and clamp .
11mm are for 7mgte (supra), DSM elicpse etc, Rb20-26 Injectors) early rx7
14mm is for standard 64mm modern injectors such as Bosch FIC/ID/Deatschwerks
14mm and 11mm INJECTORS WILL NEED ADAPTERS link here even if the ends are the same pintle cap design! our Fuel Rail bracket lengths are designed with these in mind.
INSTALLATION INSTRUCTIONS
Dont forget your Deatschwerks Fuel Pressure Regulator or buy our DROP IN kit that includes Fuel Rail + Bungs + DW injectors + DW Fuel Pressure Regulator Which has great savings!
