Mazda Miata Tuning EMS engine management System ms3 pro amp efi plug and play 1996 1997
Mazda Miata Tuning ECU TURBO plug and play
Mazda Miata Tuning Dyno Horsepower

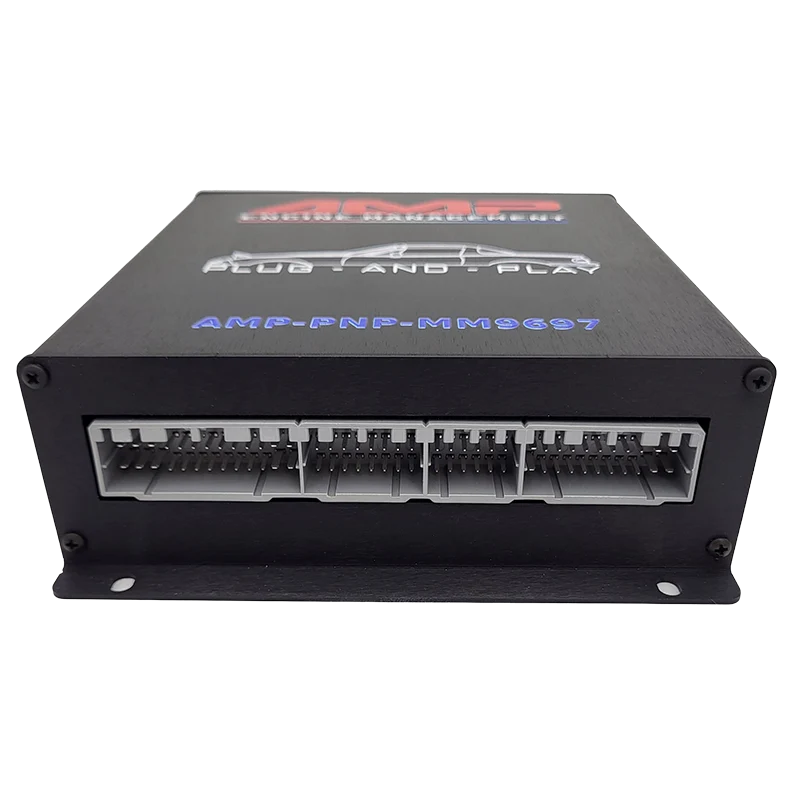

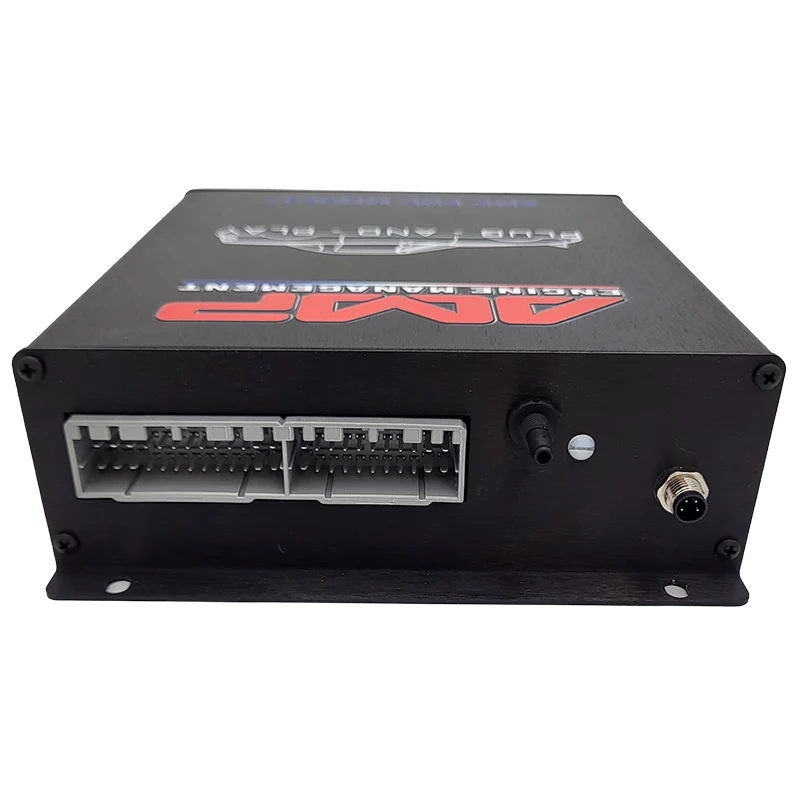

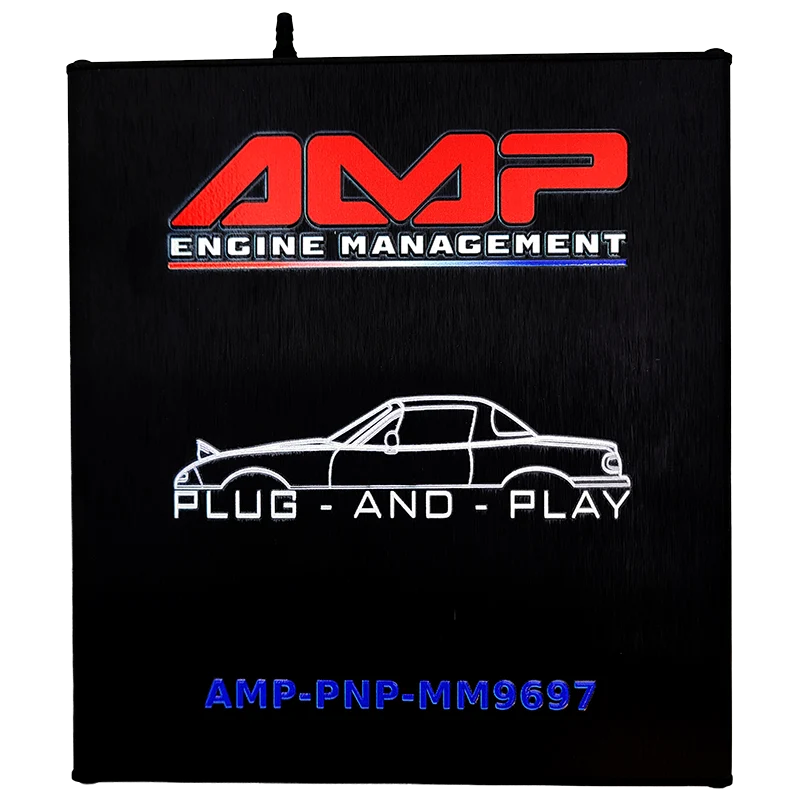

AMP Plug-and-Play ECU - Mazda 1996-1997 NA8 Miata 1.8L

$1,349.00 Sale

  • Enhance your 1996–1997 Mazda NA8 Miata 1.8L with the AMP Plug-N-Play ECU (AMP PNP) – the next evolution of the proven MSPNP-Pro platform, built on the same trusted MS3Pro Technology used in high-performance motorsports applications worldwide.

    The AMP PNP delivers the same rock-solid reliability, advanced tuning capability, and proven performance customers have trusted for years — with major usability and hardware upgrades that make installation cleaner, expandability easier, and tuning more powerful than ever.

    This is not a new, untested system — it is a refined and enhanced version of the MSPNP-Pro, redesigned to give you more capability with less complexity.

    Compatibility:

    1996-1997 Mazda NA8 Miata 1.8L AMP Plug and Play ECU:

    • 1996-1997 USDM Mazda ‘NA8’ Miata: 1.8L [BPZE] (Manual Transmission)
    • European & Japanese Domestic Market Mazda MX-5: 1.8L Models (Manual Transmission)

    Important Compatibility Notes:

    • 1996-1997 JDM & EUR ‘NA’ MX-5 with the B6ZE 1.6L: NOT Compatible

    Integrated Wideband O2 – No External Controller Required

    The AMP PNP is now available with an optional fully integrated wideband controller, eliminating the need for external modules and extra wiring.

    • Uses the same Bosch-based wideband control technology as our proven standalone wideband
    • Powered by Bosch IC chips and Bosch LSU 4.9 sensor compatibility
    • No separate wideband controller required
    • Simply plug the included wideband sensor cable directly into the ECU

    Benefits:

    • Cleaner installation (no extra boxes or wiring)
    • Faster setup and reduced install time
    • Improved reliability with fewer connection points
    • Seamless integration with ECU tuning and datalogging

    This brings professional-grade wideband control directly inside the ECU, simplifying your setup without sacrificing performance.

    Expanded I/O with New 48-Pin Options Connector

    The AMP PNP significantly expands input/output capability through a redesigned 48-pin rear options connector, giving you more flexibility for advanced builds.

    Available I/O:

    • 8 Analog Inputs
    • 4 Digital Inputs
    • 2 Speed Inputs
    • 9 Outputs

    This expanded I/O allows for easier integration of:

    • Additional sensors
    • Advanced controls
    • Custom race features

    Dedicated Rear Spark Outputs for Easy COP Upgrades

    All spark outputs are available on the rear connector, making Coil-On-Plug (COP) conversions cleaner and easier than ever.

    • No complex repinning or harness modification
    • Simplified wiring for ignition upgrades
    • Ideal for high-performance and boosted applications

    Features:

    • Fully Plug and Play Installation: No wiring required for basic functionality
      • Average Install Time: Under 1 hour!
    • Base Map Pre-loaded: Helps your engine start on the first turn of the key
    • Real-Time Tuning & Data Logging: Connect via laptop for easy data monitoring
    • 8 GB Internal Data Logging: Includes built-in SD card for easy data storage
    • Supports Most Aftermarket Wideband Sensors: Integrates with popular systems for accurate tuning

    Fully Tunable Engine Control:

    • 16×16 Fuel and Ignition Tables: High-resolution tuning for precise fuel control over fuel and ignition mapping
    • Multiple Acceleration Enrichment Strategies: Optimizes fuel and timing for acceleration
    • Closed Loop Idle Speed Control: Keeps idle stable in varying conditions
    • Air Conditioner Control: Manages AC load based on engine performance
    • 4 Sequential Fuel Injector Channels: Individual trim tables for each injector channel
    • Supports OEM Wasted Spark Ignition or Sequential Coil-on-Plug Conversion:
    • Onboard High Impedance Injector Drivers: Drives modern injectors efficiently
    • Allows Removal of Stock Airflow Meter: Offers more flexibility in tuning

    Advanced Feature Set:

    • 12×12 Air-Fuel Ratio Target Tables: Use with wideband O2 sensor for precise tuning
    • VVT Support: If swapping to a later VVT motor
    • Programmable Voltage Regulator Control: For NB alternator swaps
    • Multiple Traction Control Strategies: Add a front wheel VSS for traction control capabilities
    • Built-in 3-Step Rev Limiter/Launch Control: Includes flat shift and burnout rev limiter
    • Real-Time Barometric Correction: Adjusts for altitude changes during tuning
    • Internal 4-Bar MAP Sensor: Reads up to 44 PSI of boost for aggressive tuning
    • Overboost Protection: Protects the engine by monitoring boost levels
    • Closed Loop Boost Control: Requires EBC solenoid kit for precise boost management
    • Rally-Style Anti-Lag: Boosts performance during launches
    • Water Injection Control: On/Off or variable control for optimized performance
    • Knock Sensor Input: Adjustable sensitivity, crank angle windowing, and more
    • Table Switching Input: Change fuel and spark maps on the fly for different fuels or nitrous activation
    • Flex Fuel Sensor Input: Seamlessly switch between E85 and gasoline
    • CANBus Connector: Allows interconnection with other MegaSquirt-compatible devices for additional functions (EGT Input, Automatic Transmission Controller, Additional Sensors, etc.)

    What’s in the Box:

    • 1996-1997 Mazda NA8 Miata AMP Plug and Play ECU
    • 6’ Vacuum Hose for MAP Signal and ‘T’ Fitting
    • Rear Options Kit
      • Connector A - 26 Pin Connector
      • Connector B - 22 Pin Connector
      • 6″ Wire Pigtail (Large & Small Pins)
    • Internal Wideband ONLY
      • Bosch LSU 4.9 Sensor
      • 6' LSU 4.9 Cable
    • M8 Serial Tuning Cable
    • TunerStudio Registration Code
