Regular price $1,799.00 Sale

Making the L-Series Great again is one of ProTunerz slogans and social media hashtags. We cry every time we see an RB, JZ or LS swap. There is so much potential to be unlocked from the L-Series if properly built.

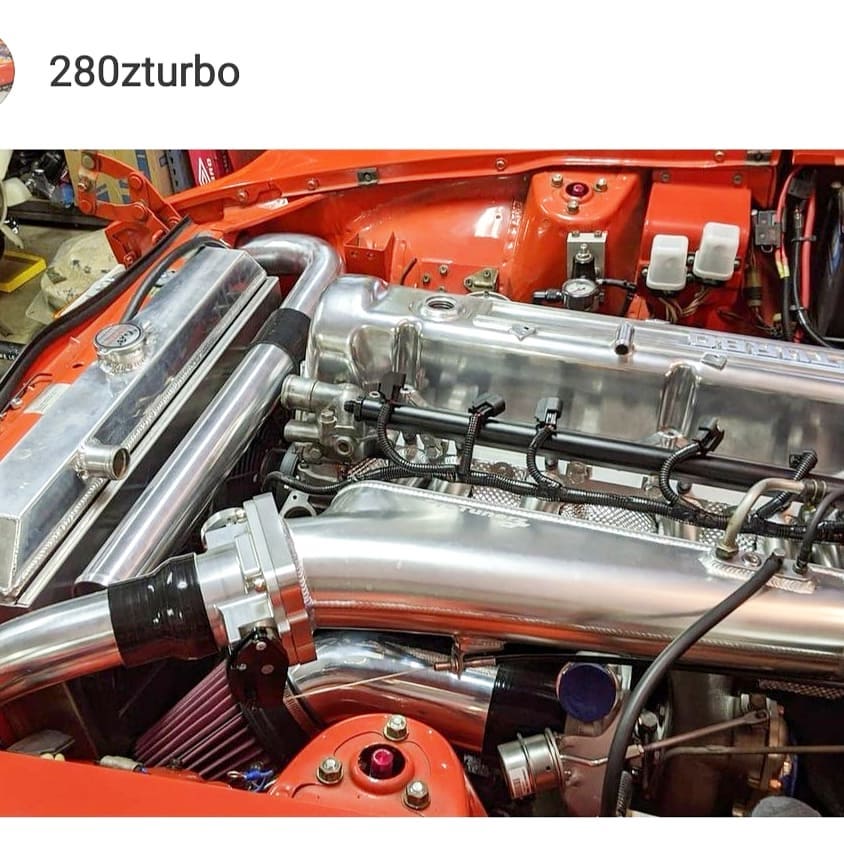

ProTunerz has been at the forefront of Turbo Charging Zcars. We have sold thousands of Intakes and Turbo Manifolds! Our Products have been featured on SEMA builds, ZCon and JCCS winners! Take look at some of Customer Rides.

2000F Ceramic coating available. Add which product you like coated. HERETurbo manifold. Intake Manifold are all anodized at no extra. Add Message in checkout for Downpipe model Z or ZX

If you would like to purchase the Proper Fitting Turbo and Gate
.

WHATS INCLUDED?

TURBO MANIFOLD + INTAKE SET

Turbo Manifold Details

  • Construction - Stainless steel, 304 3mm thick TIG welded.
  • Custom Flange thick and improvements over stock design.
  • T3 Turbo flange Inlet.
  • 44mm V-band Wastegate inlet for most new common WG (Tial MVR 44mm /Precision 46/TurboSmart Hyper Gate 45 / Garret GV45)
  • Will Clear T3 mid Frame turbo This was designed with Garrett GT or GTX GT30 / GT35. We recommend a GT3071R or GTX3071R with .63AR Housing
  • Square port flange. Will Seal over round port.
  • Will clear Left hand and Right hand steering.
  • Will fit s30(240z-280z) and s130 (280zx) models
  • NOT CONFIRMED FITMENT on 280zx 79-81 Power Steering "power recirculating ball" type solution switch to manual rack or 82-83 PS Rack
  • AC will also fit
  • Cerakote Ceramic Coat option NOW available Glacier Black, Silver, Gray, Green, Gold and Red!

Select finish for Intake, Fuel Rail and Throttle body.

NEW VERSION 3.0 CHANGELOG

  • 3/8 NPT bung now added on bottom of Throttle body instead of Barb
  • "PTZ" logo CNC milled and on top of Throttle body
  • No need for spacer for  NEW IAC Throttle body
  • IAC block off also included!
  • Angled Plenum/Runners: improves air flow smooth transition into head allows easier access to Header/DownPipe for maintenance.
  • Less Heat soak due to reduced heat absorption properties of materials (when compared to stock and other aftermarket manifolds).
  • CNC BILLET Flange with built-in CNC MILLED velocity stacks runners to minimize turbulence and promote nearly even cylinder head aspiration at all ports.
  • Gorgeous Fabrication: TIG welded Aluminum
  • Bolts and Fittings included.
  • Vacuum ports: 4 on the top/side to support vacuum-based accessories and accurate MAP readings.
  • Durable Finish
  • 38mm runner Diameter
  • NEW BUILT IN VELOCITY STACKS

FUEL RAIL (4 Colors Black, Polished, Red, Blue)

  • Fuel Rail designed for 14mm/11mm Or oem Barb style Injectors
  • we have tested the injectors to work with 90% of injectors on the market with no issues. ev6 14mm (Injector Dynamics/Deatschwerks/Bosch for 14mm DO NOT use "shortie"or mid lsx style these are for 64mm from oring to oring height or simply buy injectors from us. For 11mm  standard injector length, RB26 / Factory z / Rx7 / Supra / Early siemens /deka.
  • ORB-8 inlet with 6AN male fitting ends
  • Fuel Pressure/Sensor Port (Plug included)

THROTTLE BODY (Will match chosen manifold color by default.

  • 75mm Throttle body, Improve throttle response and increase air flow!
  • Cable actuated. Improves throttle feel and smooths pedal feedback.
    (Plus no more yellow balls and ugly mechanical linkage!)
  • Utilizes stock OEM TPS/240sx or 2jz adapters included! (for modern Engine Management Systems that require potentiometer)

Dont forget to add a NEW TPS Sensor with connector and proper Injectors (14mm)

If you do not want to convert to AN Lines we also Make ORB-8 to 5/16 Barb for inlet and ORB-6 to 5/16 Barb
