L-Series Intake Manifold /Fuel Rail / 75mm Throttle Body VERS 3.0

Regular price $949.00 Sale


THIS A PRE-BUY  4-7WEEKS ONLY FOR BLACK AND SILVER

NEW VERSION 3.0 CHANGELOG

  • 3/8 NPT bung now added on bottom of Throttle body instead of Barb
  • Block off flush allen fittings in anodized black for every vacuum port now included!
  • "PTZ" logo CNC milled and on top of Throttle body
  • No need for spacer for  NEW IAC Throttle body
  • IAC block off also included!

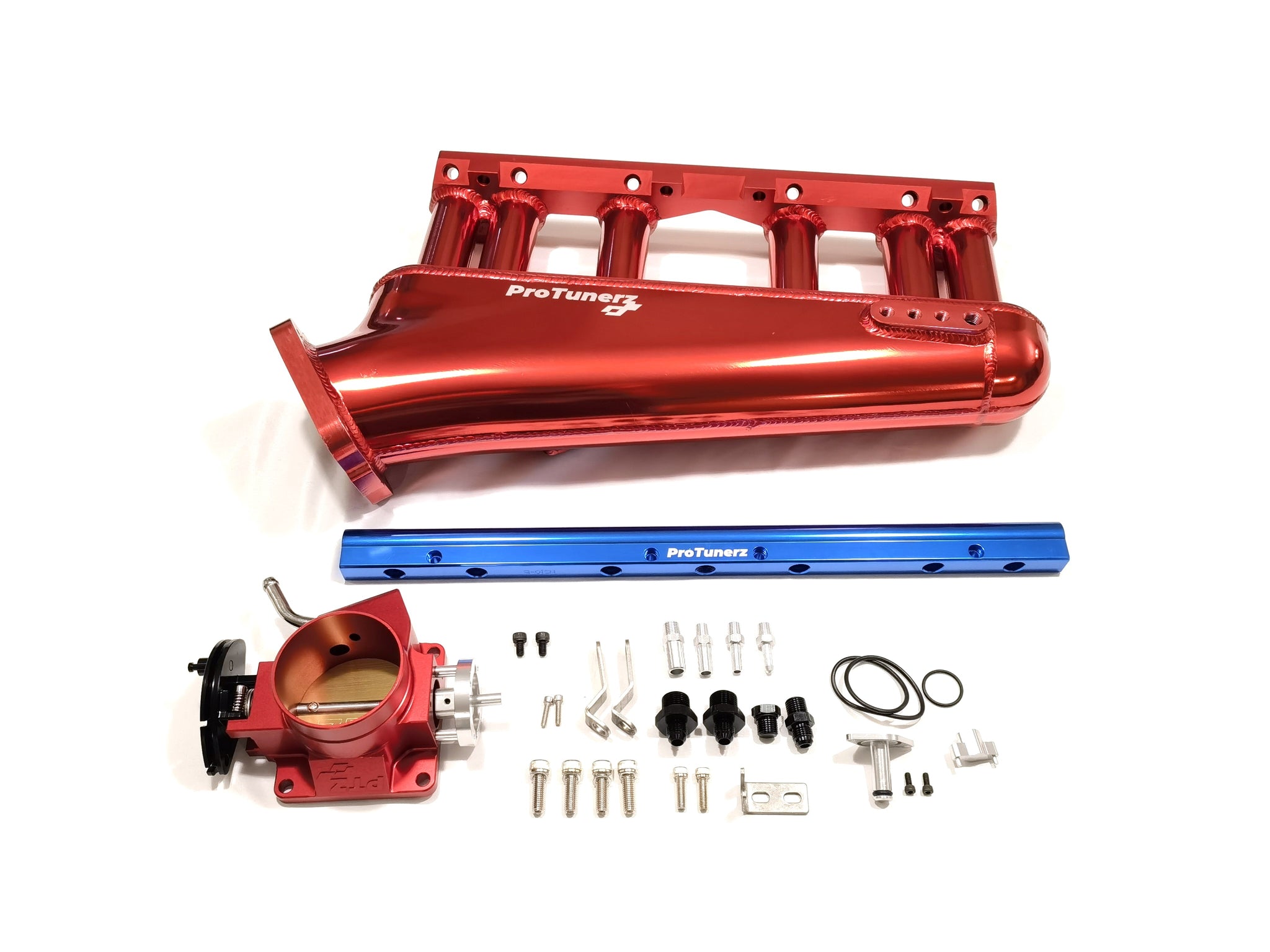

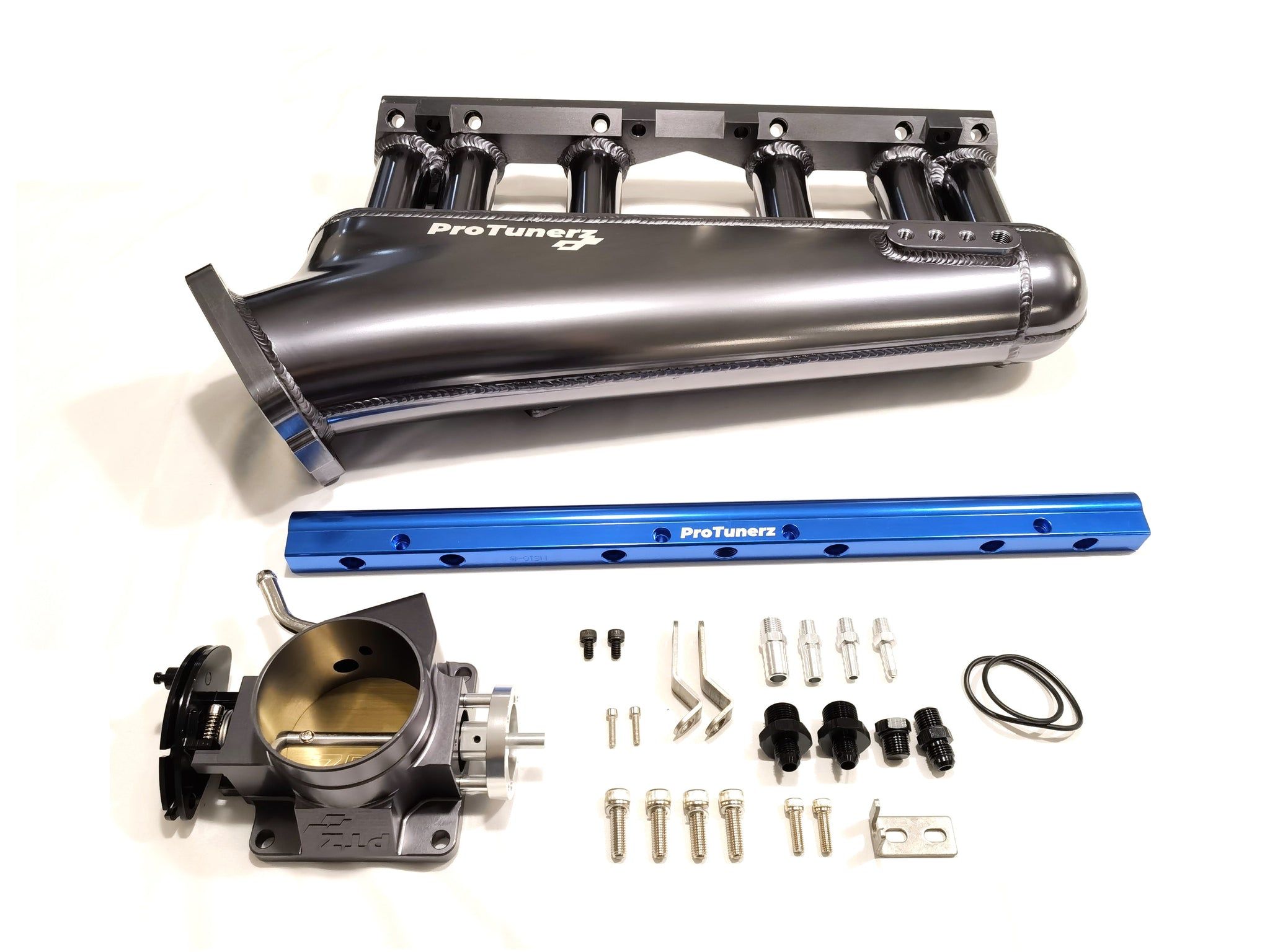

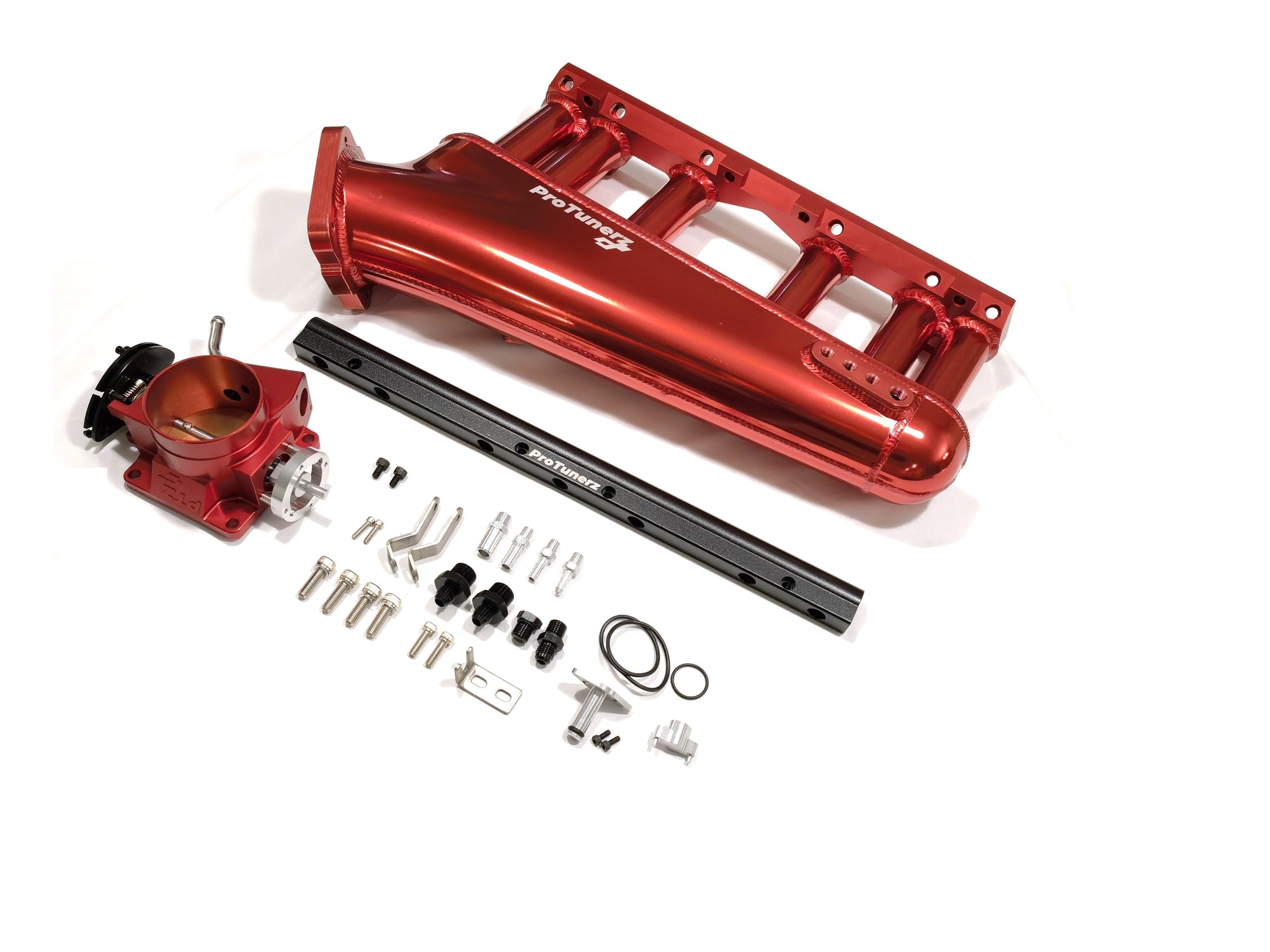

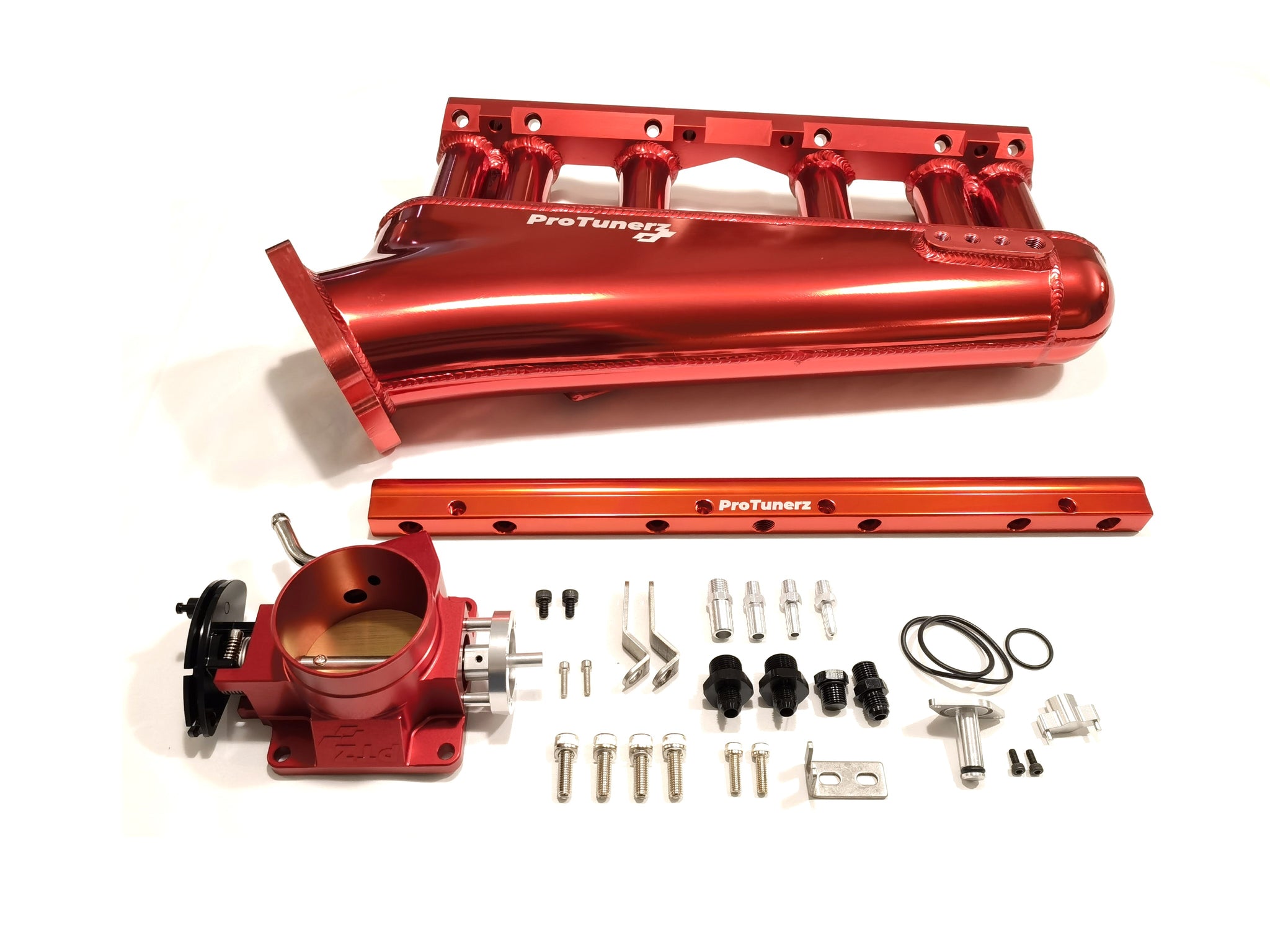

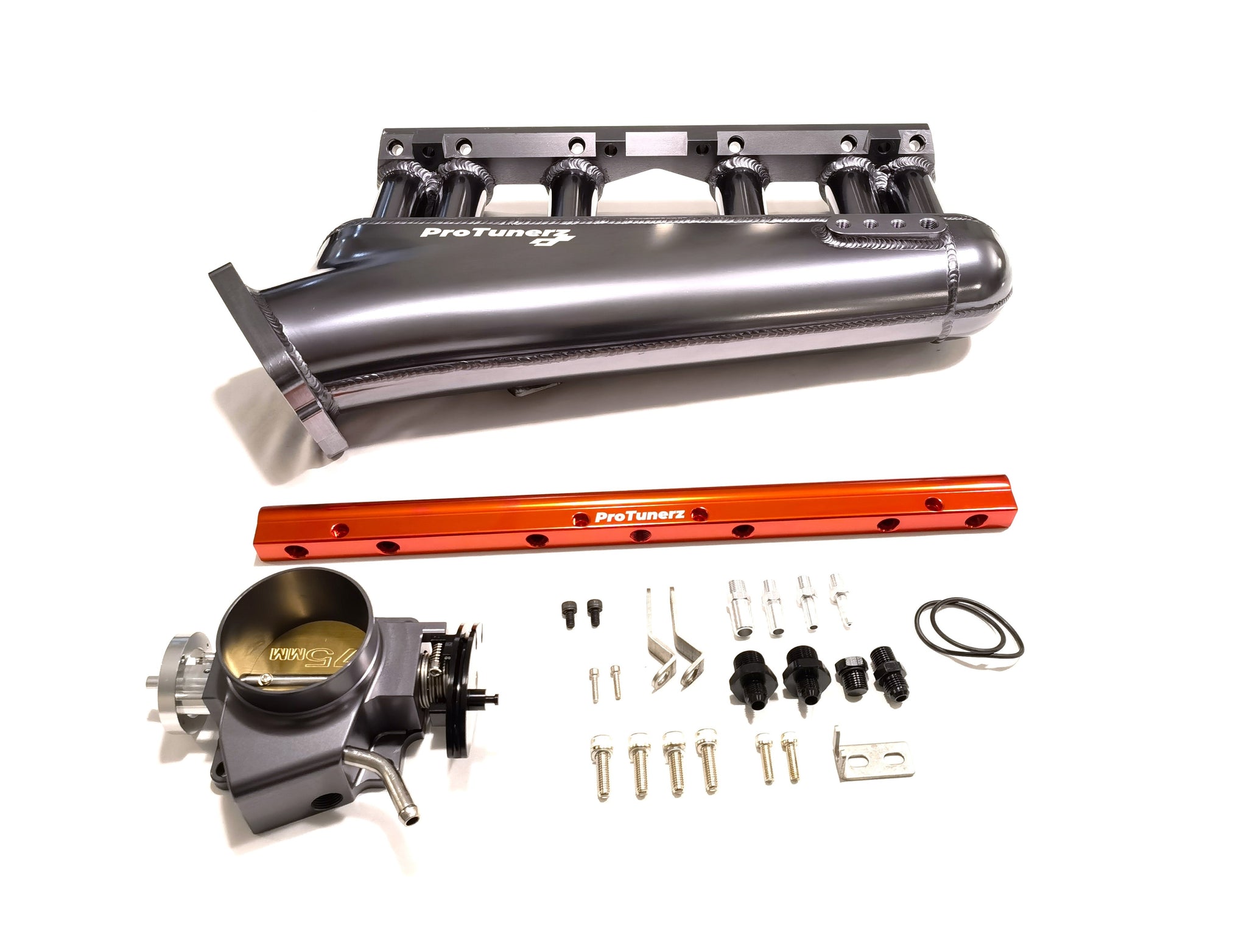

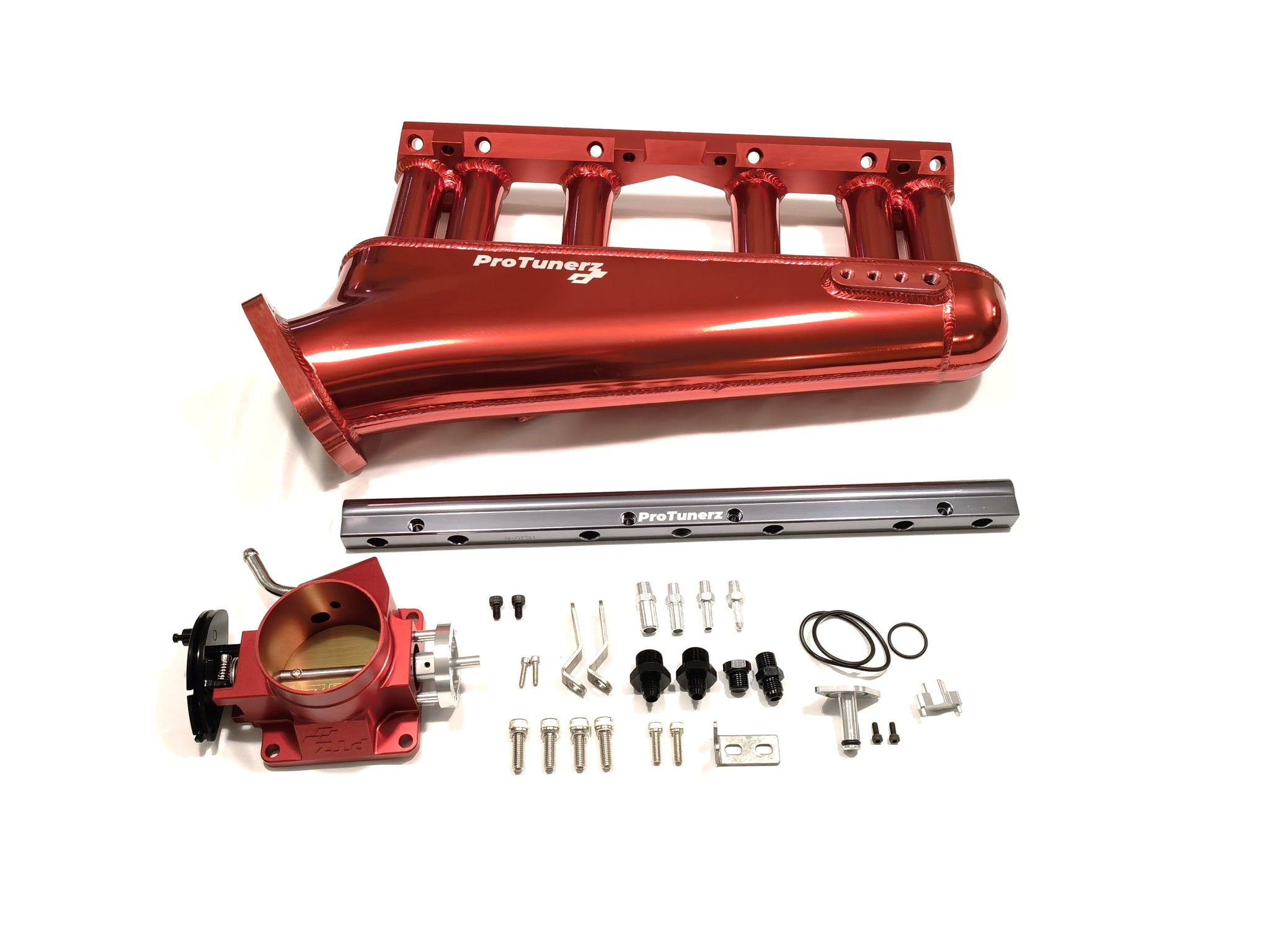

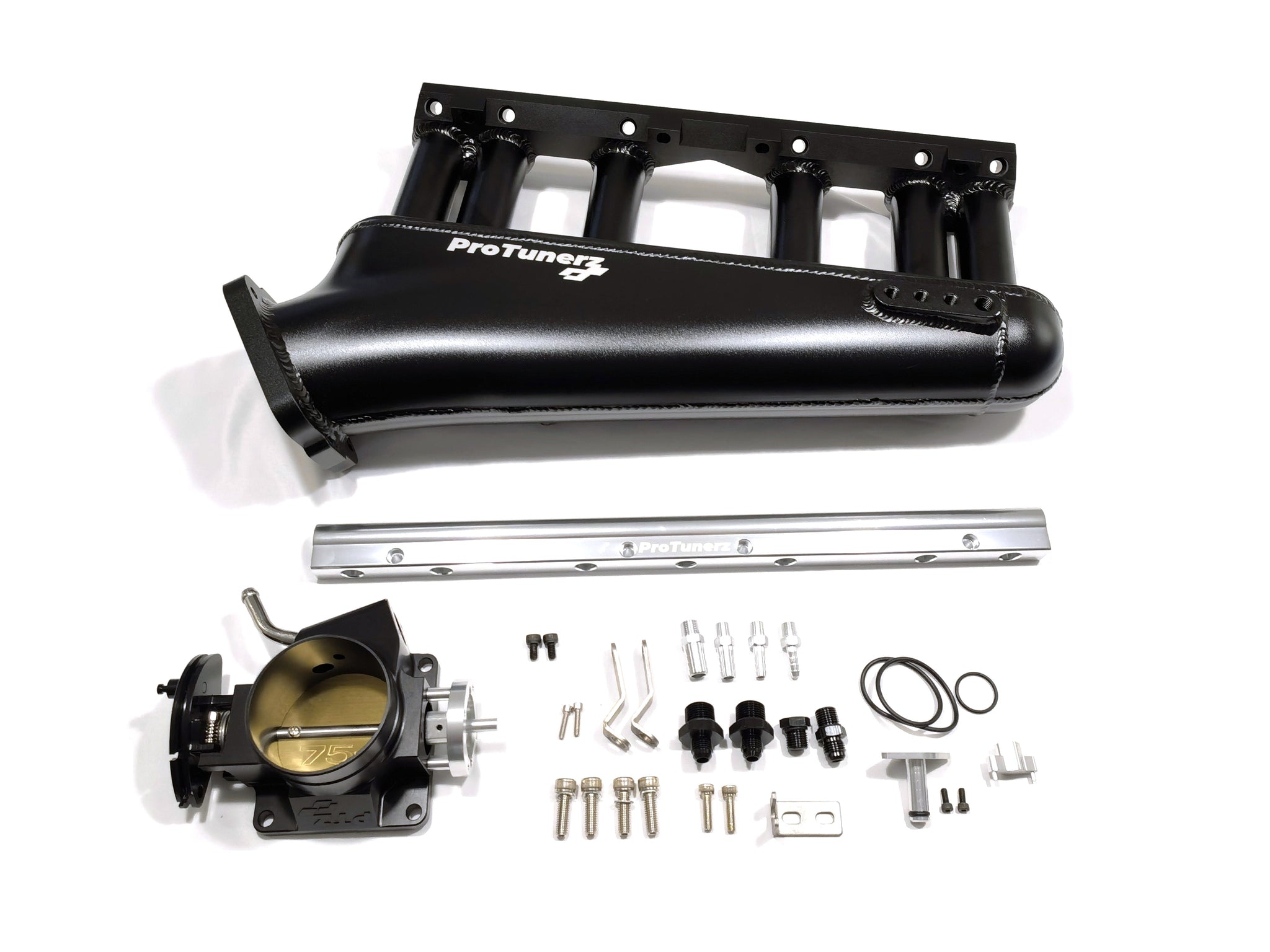

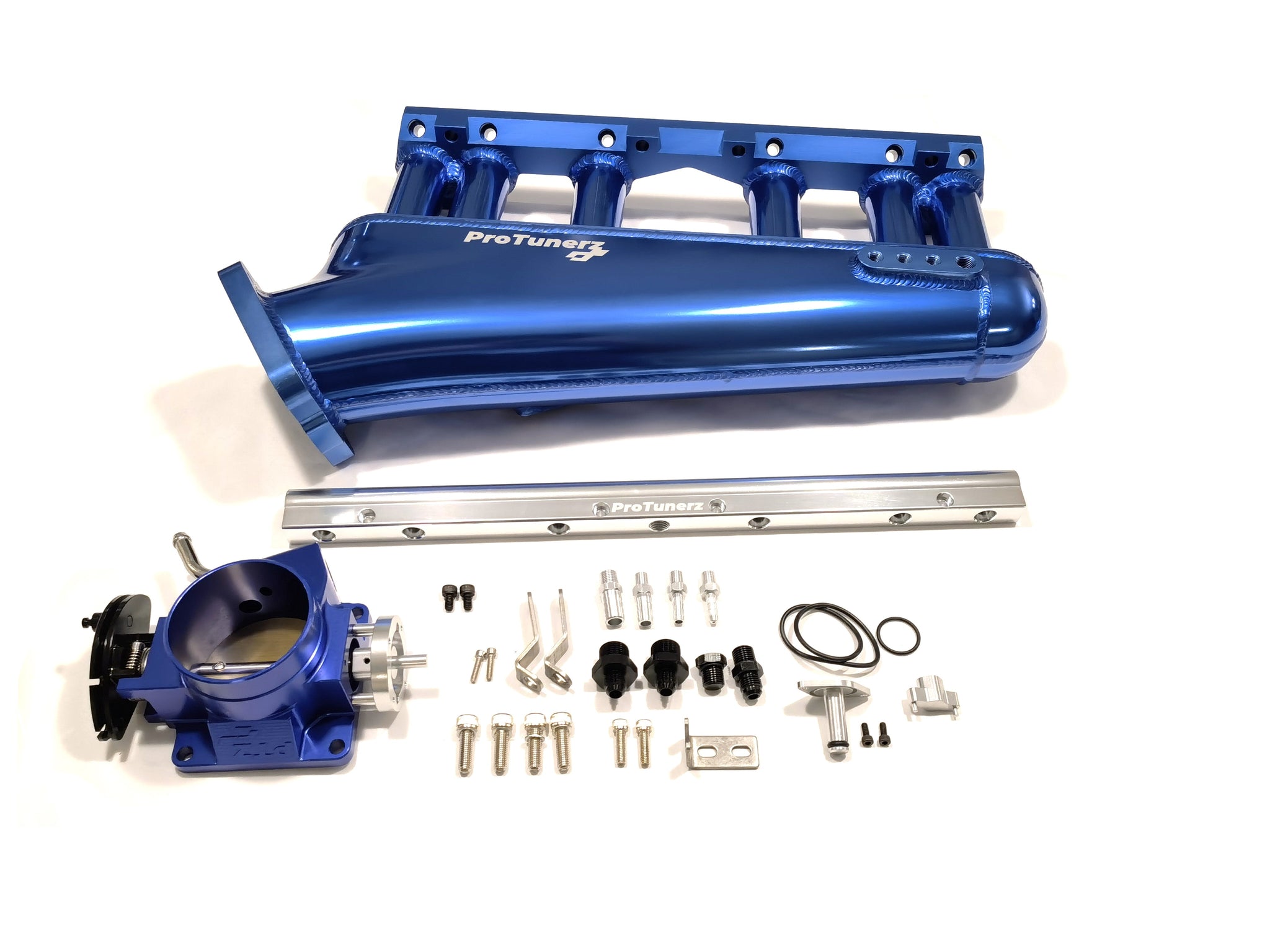

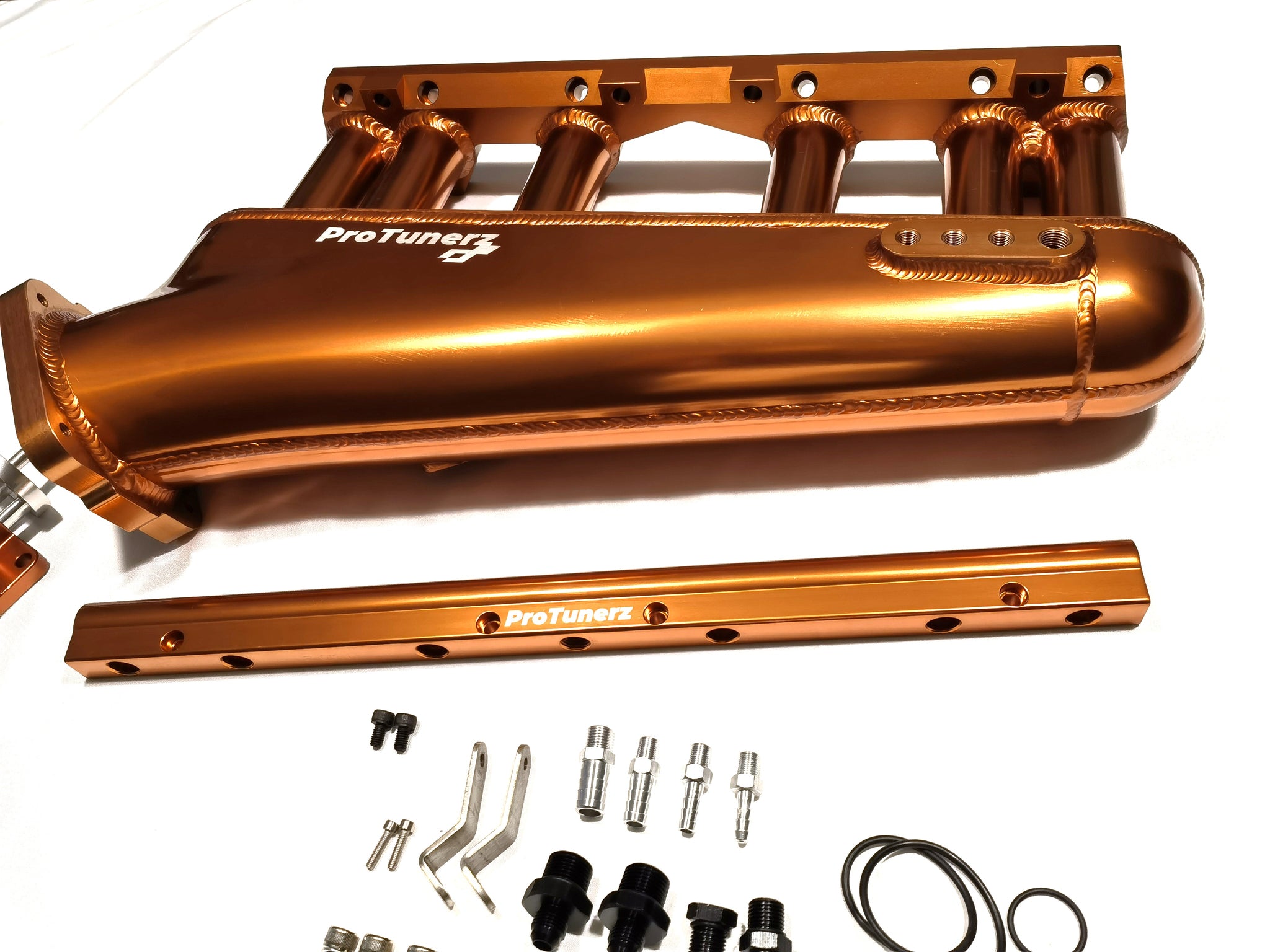

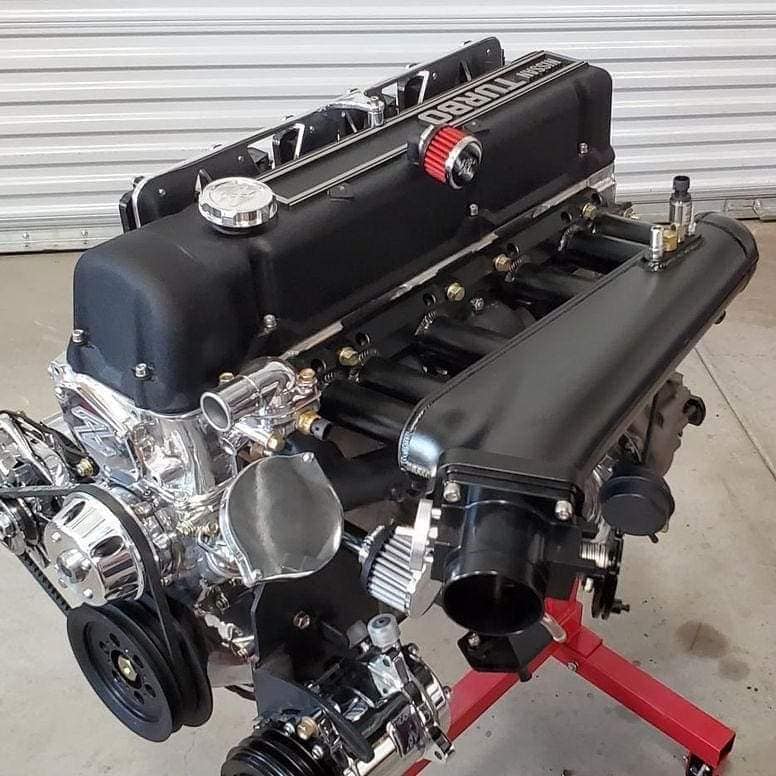

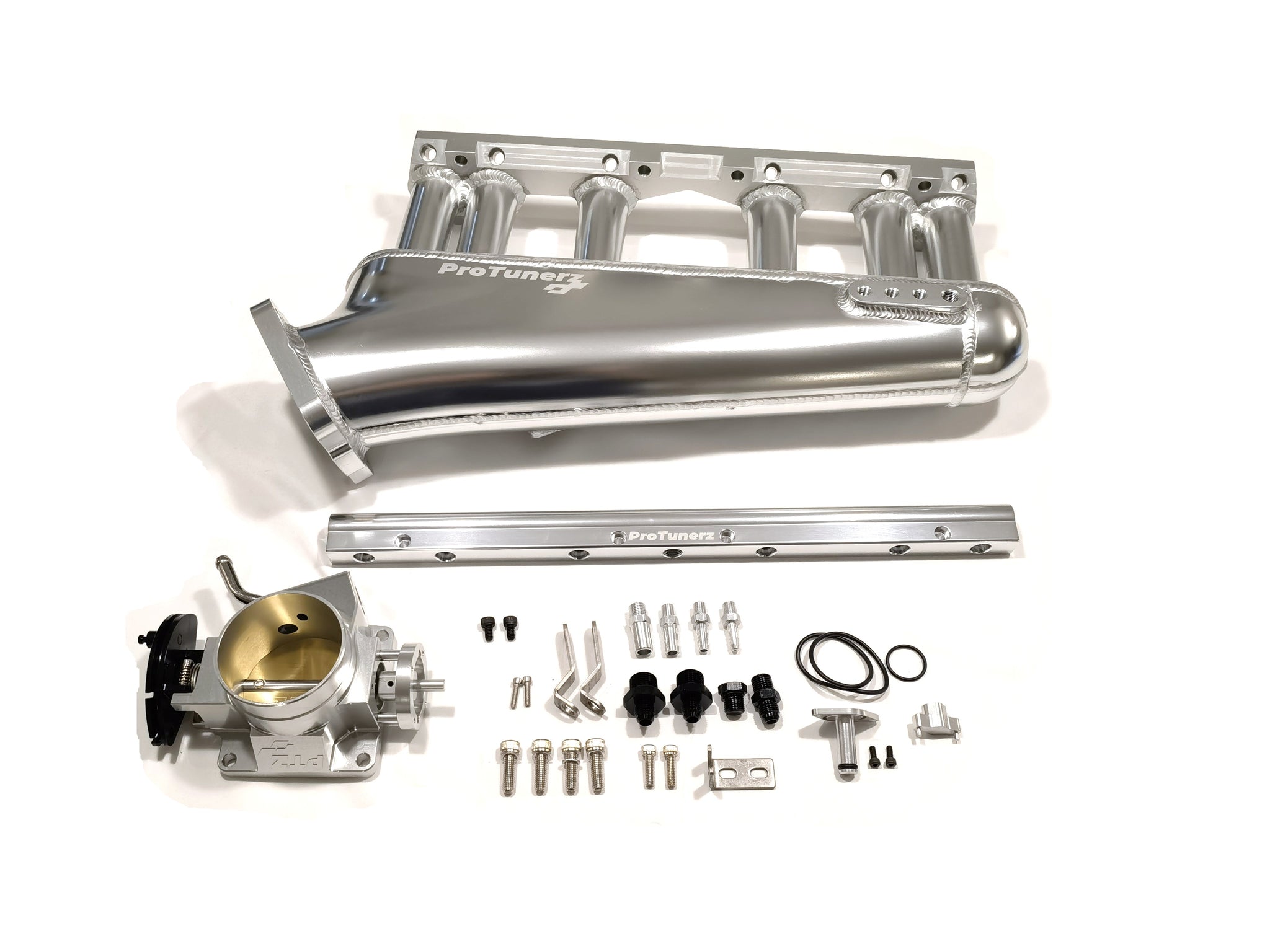

A Beautifully TIG welded Aluminum Intake Manifold For the L-Series motors. With 75mm Throttle body and Fuel Rail. We have been researching and developing this behind the scenes it is a very well thought out piece that has function and form combined.



INTAKE (4 colors Red, Blue, Flat Black , Polished)

  • Angled Plenum/Runners: improves air flow smooth transition into head allows easier access to Header/DownPipe for maintenance.
  • Less Heat soak due to reduced heat absorption properties of materials (when compared to stock and other aftermarket manifolds).
  • CNC BILLET Flange with built-in CNC MILLED velocity stacks runners to minimize turbulence and promote nearly even cylinder head aspiration at all ports.
  • Gorgeous Fabrication: TIG welded Aluminum
  • Bolts and Fittings included.
  • Vacuum ports: 4 on the top/side to support vacuum-based accessories and accurate MAP readings.
  • Durable Finish
  • 38mm runner Diameter
  • NEW BUILT IN VELOCITY STACKS

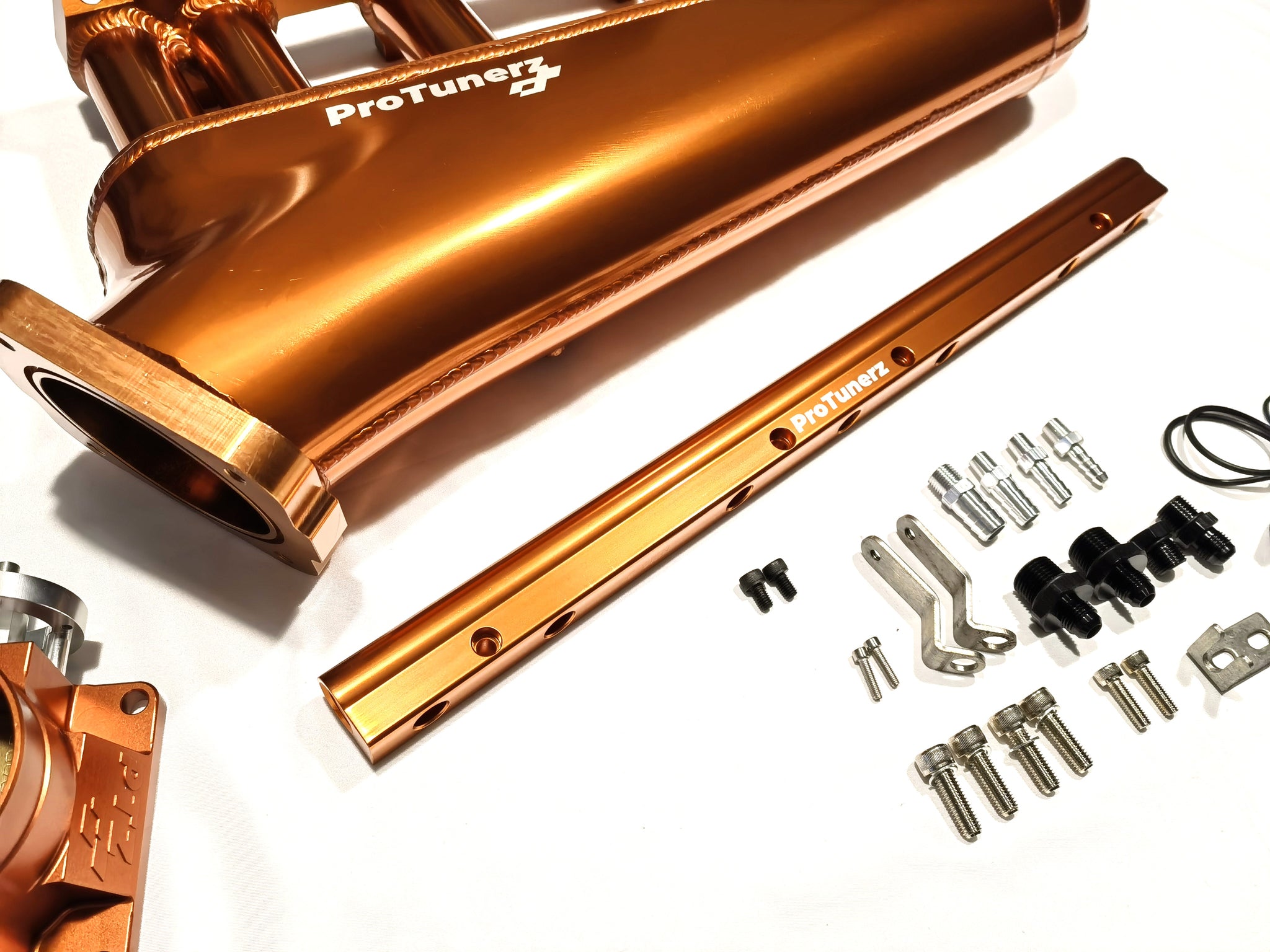

FUEL RAIL (4 Colors Black, Polished, Red, Blue)

  • Fuel Rail designed for 14mm/11mm Or oem Barb style Injectors
  • we have tested the injectors to work with 90% of injectors on the market with no issues. ev6 14mm (Injector Dynamics/Deatschwerks/Bosch DO NOT use "shortie" lsx style these are for 56-60mm standard injector length, RB26 / Factory z / Rx7 / Supra / Early siemens /deka
  • ORB-8 inlet with 6AN male fitting ends
  • Fuel Pressure/Sensor Port (Plug included)

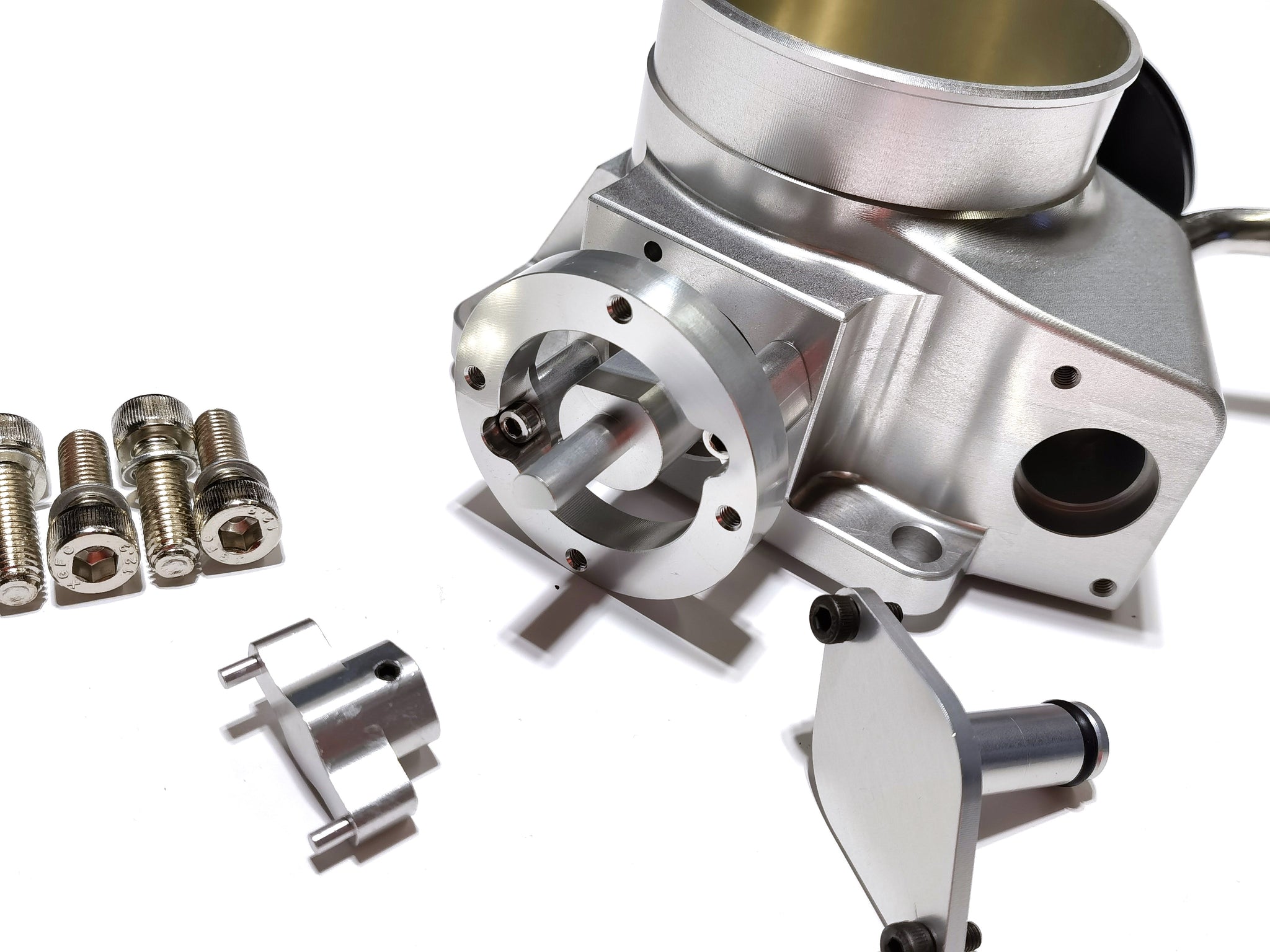

THROTTLE BODY

  • 75mm Billet CNC Throttle body, Improve throttle response and increase air flow!
  • Cable actuated. Improves throttle feel and smooths pedal feedback.
    (Plus no more yellow balls and ugly mechanical linkage!)
  • Utilizes stock OEM TPS/240sx or 2jz adapters included! (for modern Engine Management Systems that require potentiometer)
  • NEW GM IAC PROVISION
  • Shipped Via Express Tracked and insured. Intake is very well packed with dense foam to ensure perfect delivery. Please view pics



Dont forget to add a NEW TPS Sensor with connector to your order this is the proper TPS for intake.  As well as 14mm Injectors , Fuel Pressure Regulators and Fuel Pump.
