Our Latest 75mm Throttle body is now available to add to your ProTunerz Intake. Works on all ProTunerz Version of the L-Series and all JZ/RB (rb See note below) . Straight plug and play works on all our manifolds and others with 86mm x 90mm Bolt Spacing. Has GM IAC provision and more!
Details
- 75mm Billet CNC Machine Throttle body, Improve throttle response and increase air flow!
- GM Idle Air Valve Controller. Stepper type that gradually increase/decreases Idle. Great for cold starts/AC/E85 etc.
- Cable actuated. Improves throttle feel and smooths pedal feedback.
- Utilizes many types of Throttle Sensors 240sx/2jz adapters included!
- 3/8 NPT port on the bottom. Great for the popular GM Intake Air Temp Sensor and tucked under the way!
- Extra 3/8 Barb port that can be utilized for vacuum or for PCV System.
- Anodized in Silver and Black
- "PTZ" Logo on TOP.

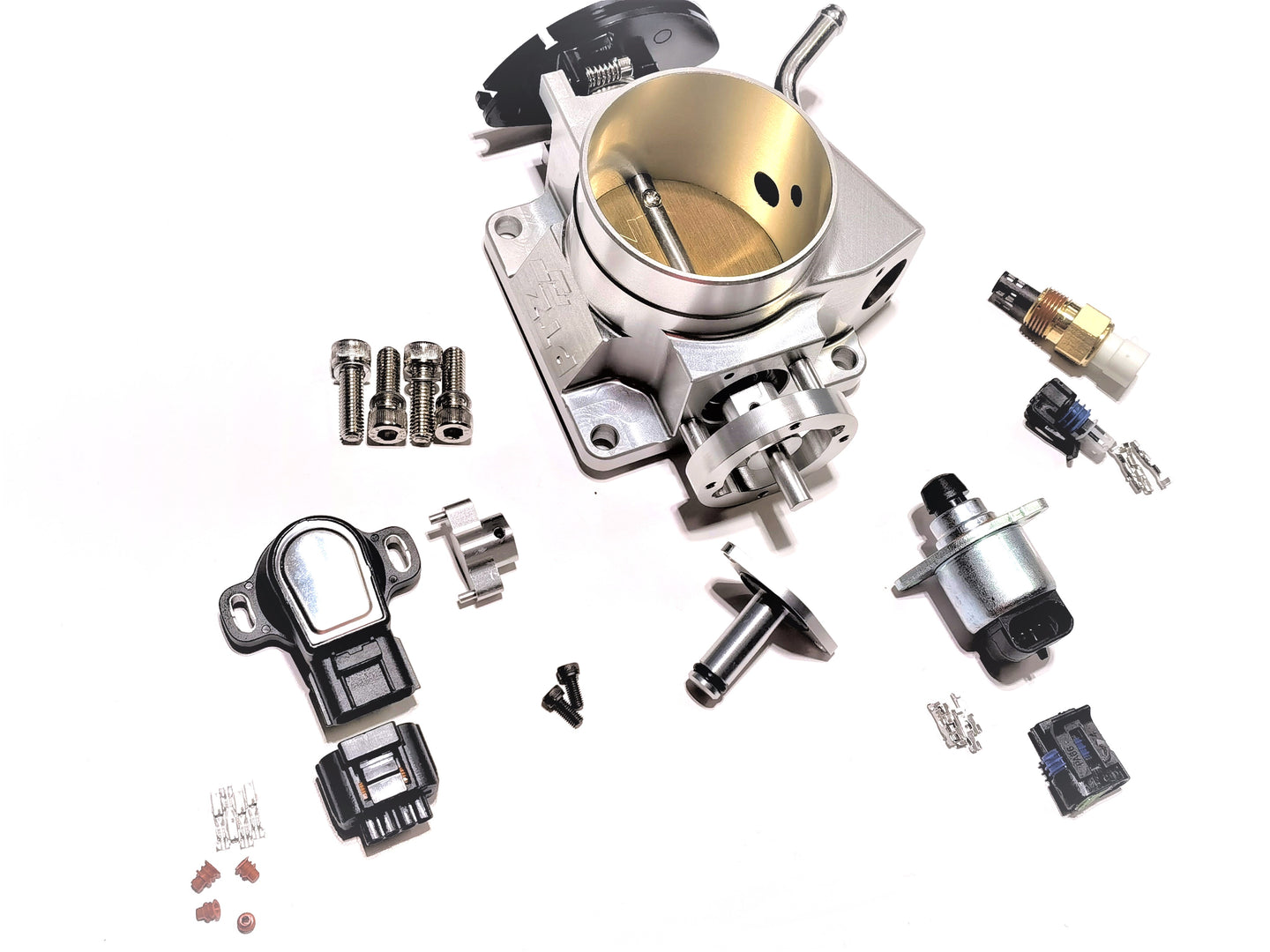

Includes
-
75mm Throttle Body Anodized Silver or Black
- TPS Adapters
- 4x Socket Cap Screw
- 2x TPS Socket cap Screw
-
IAC Block off flange w/ 2x Orings 2x Screws
- Includes IAC VALVE / Throttle Position Sensor / Intake air Temp Sensor $ 110 value!
Will work with all Our RB manifolds However you will need a counter clock wise TPS (included if you add) and Throttle Linkage bracket re-location that you have to do on your end.
